An interior IP camera dome housing is mounted using a four-eleven-sixteenths-inch square by two-and-five-sixths-inch deep backbox recessed into the finished ceiling. A flexible conduit extends from the backbox and transitions to a one-inch conduit running toward the nearest accessible ceiling. The assembly hangs below the structural ceiling slab with support provided by the backbox and conduit connections.

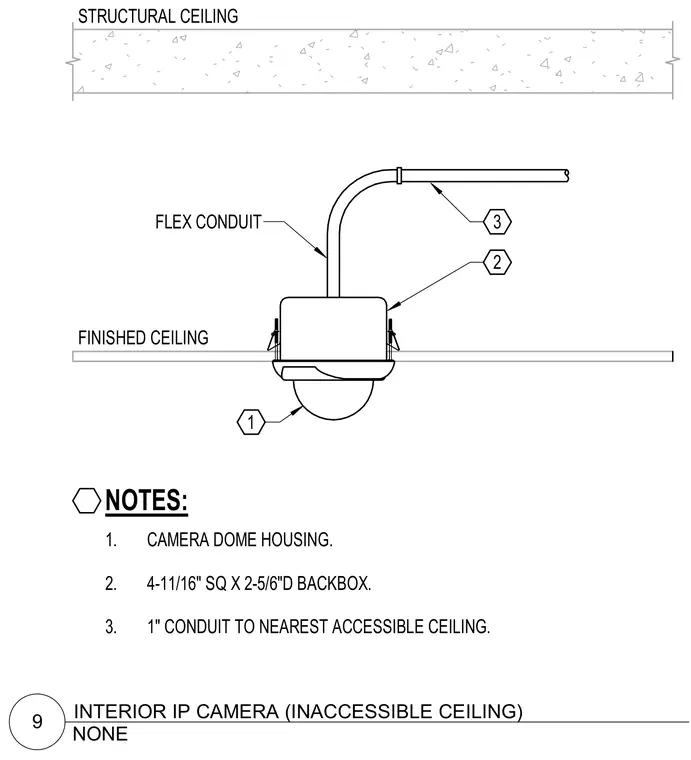

FLEX CONDUIT 1. CAMERA DOME HOUSING. 2. 4-11/16" SQ X 2-5/6"D BACKBOX. 3. 1" CONDUIT TO NEAREST ACCESSIBLE CEILING. NOTES: 1 3 2 STRUCTURAL CEILING FINISHED CEILING NONE 9 INTERIOR IP CAMERA (INACCESSIBLE CEILING)
