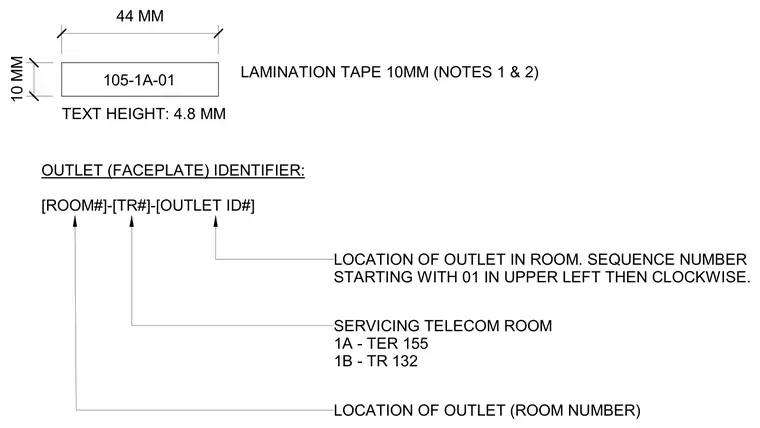

The label dimensions are 44 millimeters by 10 millimeters using a 10 millimeter lamination tape with a 4.8 millimeter text height. The outlet identifier follows a specific format consisting of the room number, telecommunication room designation, and an outlet sequence number starting at 01 in the upper left corner and proceeding clockwise.
105-1A-01 44 MM 10 MM TEXT HEIGHT: 4.8 MM LAMINATION TAPE 10MM (NOTES 1 & 2) OUTLET (FACEPLATE) IDENTIFIER: [ROOM#]-[TR#]-[OUTLET ID#] LOCATION OF OUTLET IN ROOM. SEQUENCE NUMBER STARTING WITH 01 IN UPPER LEFT THEN CLOCKWISE. SERVICING TELECOM ROOM 1A - TER 155 1B - TR 132 LOCATION OF OUTLET (ROOM NUMBER)
