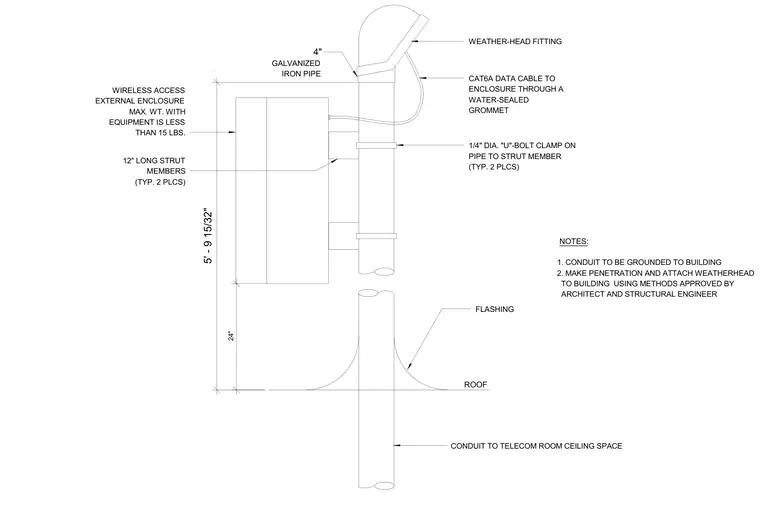

A 4-inch galvanized iron pipe rises through the roof penetration, sealed with roof flashing, and connects to the telecommunication room ceiling space below. A weather-head fitting sits at the top of the pipe, routing a CAT6A data cable through a water-sealed grommet into a wireless access external enclosure. The enclosure mounts to the pipe using two 12-inch long strut members secured by one-quarter-inch diameter U-bolt clamps in two places. The conduit requires grounding to the building, and all roof penetrations and weatherhead attachments must follow methods approved by the architect and structural engineer.
5' - 9 15/32" ROOF CONDUIT TO TELECOM ROOM CEILING SPACE 4" GALVANIZED IRON PIPE WEATHER-HEAD FITTING FLASHING 1. CONDUIT TO BE GROUNDED TO BUILDING 2. MAKE PENETRATION AND ATTACH WEATHERHEAD TO BUILDING USING METHODS APPROVED BY ARCHITECT AND STRUCTURAL ENGINEER NOTES: WIRELESS ACCESS EXTERNAL ENCLOSURE MAX. WT. WITH EQUIPMENT IS LESS THAN 15 LBS. 24" CAT6A DATA CABLE TO ENCLOSURE THROUGH A WATER-SEALED GROMMET 1/4" DIA. "U"-BOLT CLAMP ON PIPE TO STRUT MEMBER (TYP. 2 PLCS) 12" LONG STRUT MEMBERS (TYP. 2 PLCS)
