A 1-1/4 inch Schedule 40 pipe handrail attaches to a Wagner 1253R wall-mount handrail bracket using two self-tapping screws. The bracket fastens to a cross-laminated timber wall with three number 14 black wood screws featuring 2-inch threads. Brackets install at a maximum of 4 feet on center, and attach to the handrail prior to shipping. Bottom holes of brackets at the ends of walls are predrilled with all screws located a minimum of 2 inches from the panel edge.

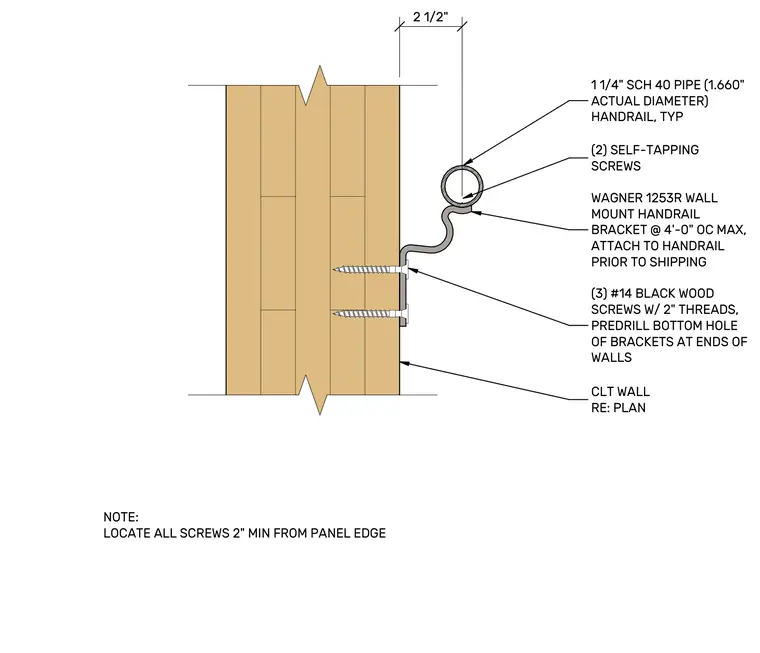

1 1/4" SCH 40 PIPE (1.660" ACTUAL DIAMETER) HANDRAIL, TYP (2) SELF-TAPPING SCREWS WAGNER 1253R WALL MOUNT HANDRAIL BRACKET @ 4'-0" OC MAX, ATTACH TO HANDRAIL PRIOR TO SHIPPING (3) #14 BLACK WOOD SCREWS W/ 2" THREADS, PREDRILL BOTTOM HOLE OF BRACKETS AT ENDS OF WALLS 2 1/2" NOTE: LOCATE ALL SCREWS 2" MIN FROM PANEL EDGE CLT WALL RE: PLAN B ^OTTOOTI
