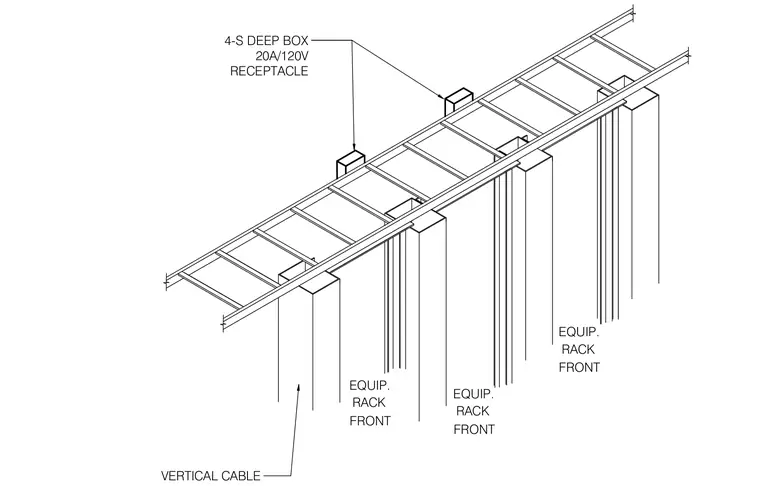

A four-square deep electrical box housing a twenty-amp, one-hundred-twenty-volt receptacle is mounted directly to the side of an overhead cable runway or ladder tray. Vertical cables drop down from the runway to the equipment racks positioned below. The installation provides localized power distribution directly at the cable tray level for equipment rack connections.
RACK EQUIP. FRONT 4-S DEEP BOX 20A/120V RECEPTACLE EQUIP. RACK FRONT RACK EQUIP. FRONT VERTICAL CABLE
