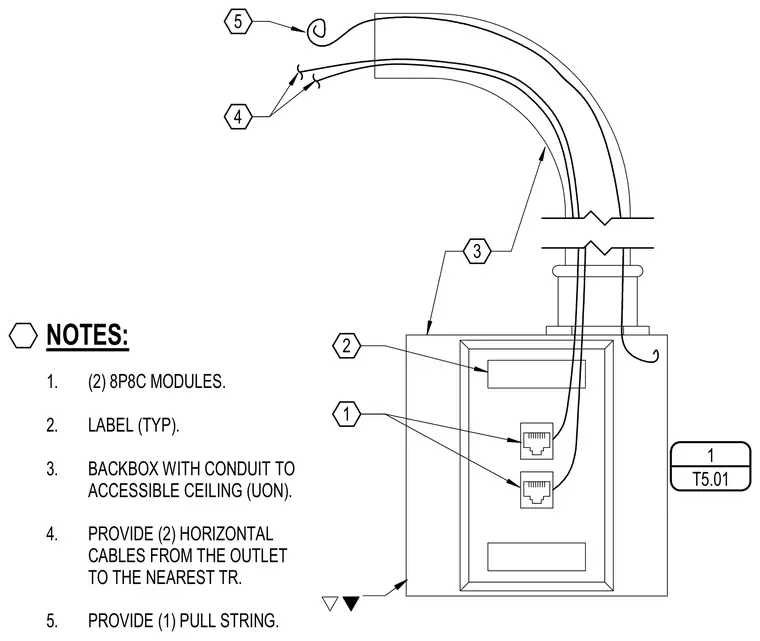

This telecommunications outlet assembly consists of a backbox fitted with two 8P8C modules and typical labeling. A conduit connects the backbox upward to an accessible ceiling unless otherwise noted. Two horizontal cables run from the outlet to the nearest telecommunications room, accompanied by one pull string.
1. (2) 8P8C MODULES. 2. LABEL (TYP). 3. BACKBOX WITH CONDUIT TO ACCESSIBLE CEILING (UON). 4. PROVIDE (2) HORIZONTAL CABLES FROM THE OUTLET TO THE NEAREST TR. 5. PROVIDE (1) PULL STRING. NOTES: 1 2 3 4 5 1 T5.01
