Telecommunications · T-3V5B7

Notes:

Elements

About this detail

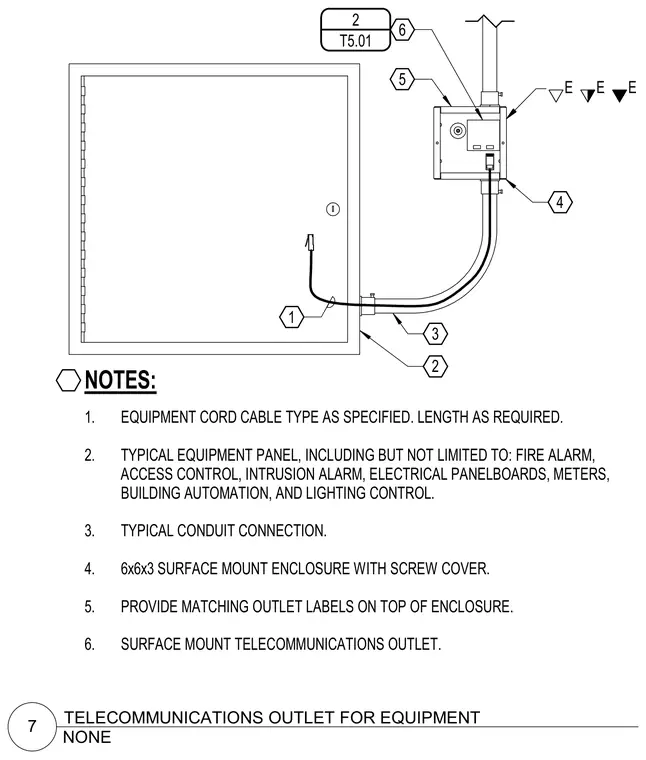

A surface mount telecommunications outlet connects via conduit to a typical equipment panel enclosure with a screw cover. Matching outlet labels are applied to the top of the 6x6x3 enclosure. Equipment cords and cable types are specified with length as required.
