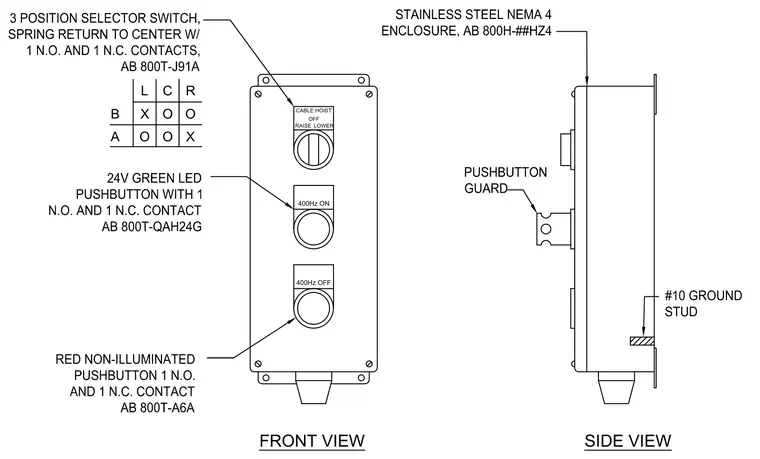

The assembly consists of a stainless steel NEMA 4 enclosure housing a 400Hz pushbutton station with a pushbutton guard on the side. The internal components include a red non-illuminated pushbutton with one normally open and one normally closed contact, a 24-volt green LED pushbutton with one normally open and one normally closed contact, and a three-position selector switch with spring return to center and one normally open and one normally closed contact. A number 10 ground stud is provided inside the enclosure for grounding.
#10 GROUND STUD RED NON-ILLUMINATED PUSHBUTTON 1 N.O. AND 1 N.C. CONTACT AB 800T-A6A 400Hz OFF 3 POSITION SELECTOR SWITCH, SPRING RETURN TO CENTER W/ 1 N.O. AND 1 N.C. CONTACTS, AB 800T-J91A A B LOWER CABLE HOIST 400Hz ON L C O O O X RAISE OFF 24V GREEN LED PUSHBUTTON WITH 1 N.O. AND 1 N.C. CONTACT AB 800T-QAH24G R O X STAINLESS STEEL NEMA 4 ENCLOSURE, AB 800H-##HZ4 PUSHBUTTON GUARD SIDE VIEW FRONT VIEW
