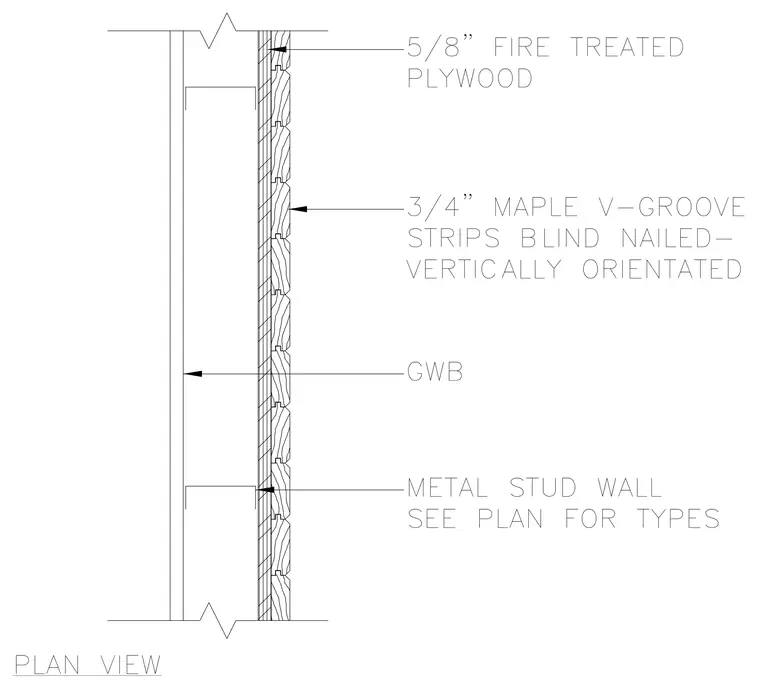

A vertical wood paneling installation over a cold-formed metal stud partition wall. The assembly consists of three-quarter-inch maple V-groove strips oriented vertically and blind-nailed through a five-eighth-inch fire-treated plywood substrate. Gypsum wallboard lines the interior side of the metal stud wall, with stud types and sizing specified per the architectural plans.
PLAN VIEW 5/8" FIRE TREATED PLYWOOD STRIPS BLIND NAILED- 3/4" MAPLE V-GROOVE VERTICALLY ORIENTATED METAL STUD WALL SEE PLAN FOR TYPES GWB
