TIA-607-D Bonding and Grounding One-Line

About this detail

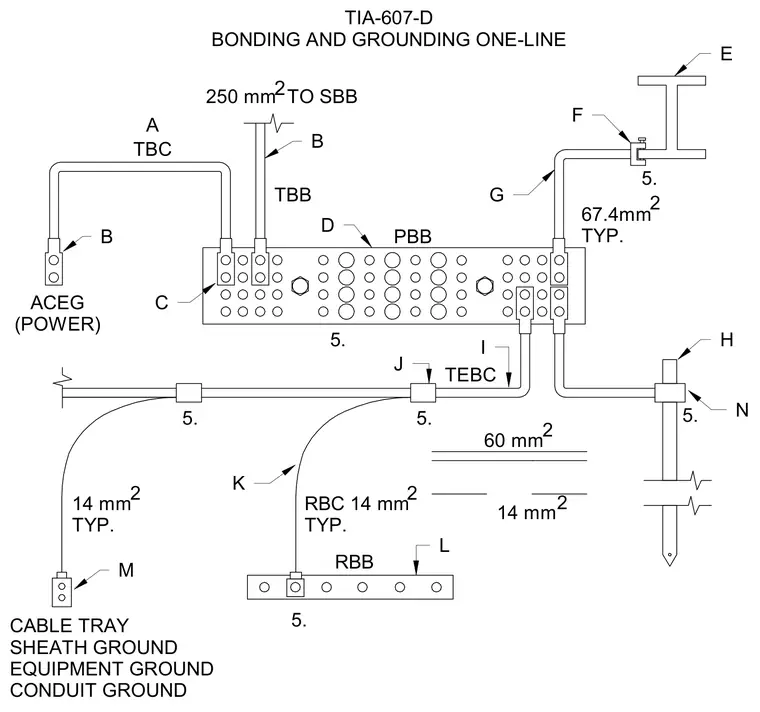

Telecommunications infrastructure grounding and bonding schematic complying with TIA-607-D standards. The primary backbone conductor and telecommunications bonding backbone connect to the primary bonding busbar with specified cross-sectional areas. Grounding conductors tie into cable trays, equipment grounds, conduit grounds, and structural steel attachments using mechanical clamps and compression lugs. Rack bonding conductors link equipment racks to the rack bonding busbar.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
