Telecommunications · T-378TA

Double Door Security Access Control Wiring Detail

Materials

Elements

Beams Doors Ceilings Floors / Slabs Entrances

About this detail

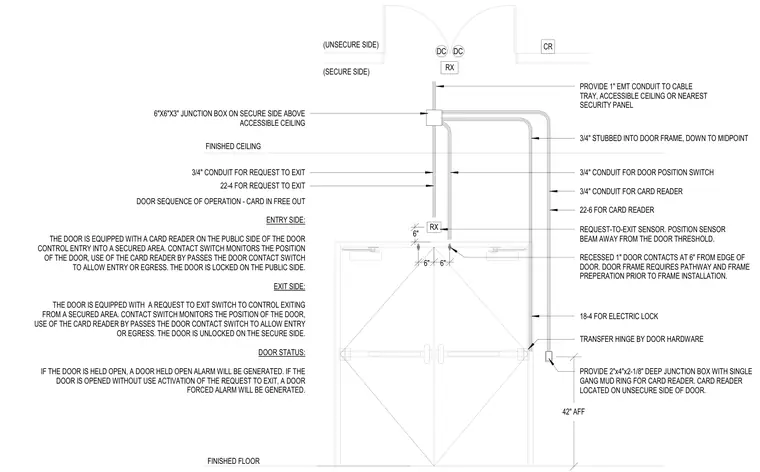

Electrical and telecommunications infrastructure for a double door security access control system, distinguishing between the secure and unsecure sides. A card reader is mounted at forty-two inches above the finished floor on the unsecure side with a dedicated two-by-four-inch junction box and single-gang mud ring, connected via three-quarter-inch conduit and twenty-two-six cable. Recessed one-inch door contacts are positioned six inches from the edge of the door for position monitoring using eighteen-four cable for the electric lock. A request-to-exit sensor and transfer hinge connect via three-quarter-inch conduit and twenty-two-four cable. All pathways route to a six-by-six-by-three-inch junction box located on the secure side above the accessible ceiling, with one-inch electrical metallic tubing stubbing out to the cable tray or security panel.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
