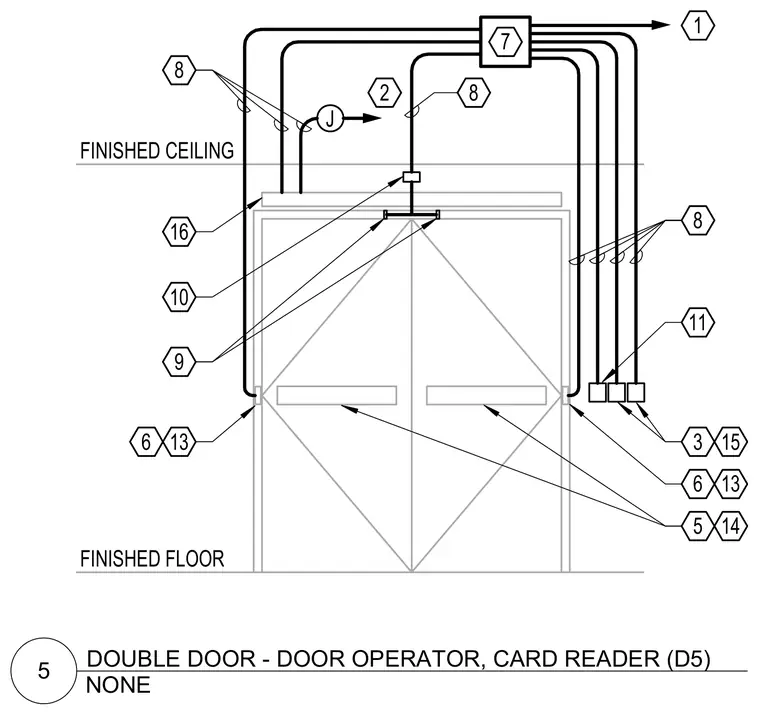

An automatic door operator unit mounts above the double door opening near the finished ceiling line. Cabling routes from a junction box through concealed conduits to the door operator, magnetic contacts, push buttons, and a card reader adjacent to the frame. The card reader and wall switches mount on the wall beside the opening between the finished floor and ceiling levels. Access control wiring terminates at specified control modules and junction boxes above the ceiling line.
J 2 3 1 13 6 5 7 FINISHED FLOOR FINISHED CEILING 15 13 14 11 8 6 9 10 16 8 8 NONE 5 DOUBLE DOOR - DOOR OPERATOR, CARD READER (D5)
