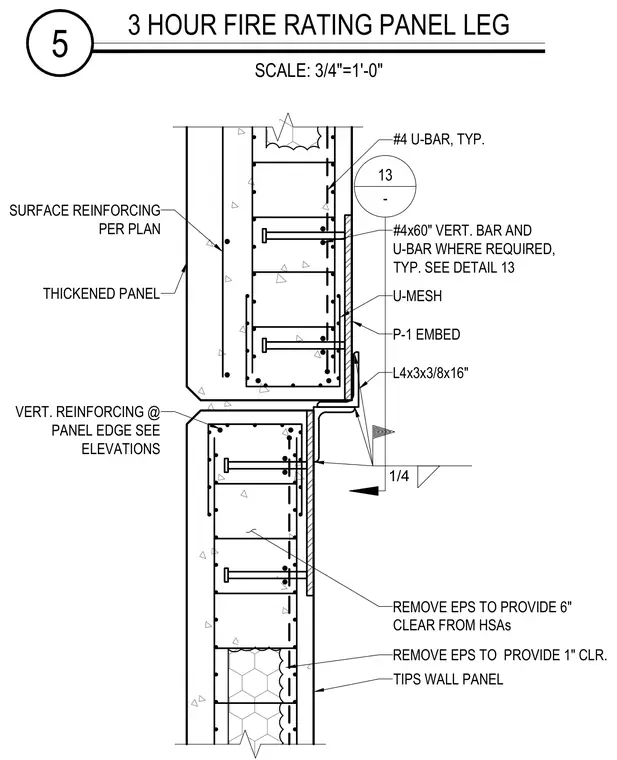

A three-hour fire-rated precast concrete wall panel leg connection features an L4x3x3/8 by sixteen-inch structural steel angle welded with a quarter-inch fillet weld. The assembly contains a P-1 embed plate with welded stud anchors, number four U-bars, U-mesh, and number four by sixty-inch vertical reinforcement bars as specified per plan. Expanded polystyrene insulation is removed locally to provide six inches of clearance from the headed stud anchors and one inch of clearance elsewhere. Surface reinforcing and vertical reinforcement at the panel edge are provided in accordance with the architectural elevations.
5 3 HOUR FIRE RATING PANEL LEG SCALE: 3/4"=1'-0" VERT. REINFORCING @ PANEL EDGE SEE ELEVATIONS P-1 EMBED REMOVE EPS TO PROVIDE 6" CLEAR FROM HSAs REMOVE EPS TO PROVIDE 1" CLR. #4 U-BAR, TYP. L4x3x3/8x16" U-MESH TIPS WALL PANEL THICKENED PANEL 1/4 SURFACE REINFORCING PER PLAN 13 - #4x60" VERT. BAR AND U-BAR WHERE REQUIRED, TYP. SEE DETAIL 13
