Telecommunications · T-2WKJT

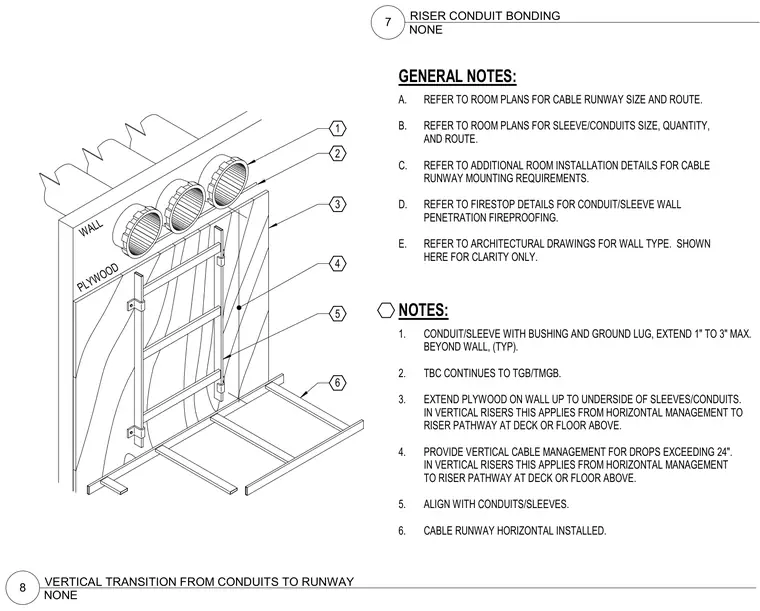

Vertical Transition From Conduits to Runway

Materials

Elements

Walls Stairs Floors / Slabs Decks Roof / Floor Openings

About this detail

A vertical transition from wall sleeves to a horizontal cable runway mounted over wall plywood. Wall conduits or sleeves feature bushings and ground lugs, extending one to three inches beyond the wall surface. Telecommunications bonding conductor runs continue to the telecommunications grounding busbar or telecommunication master grounding busbar. Plywood backing extends up the wall to the underside of the sleeves or conduits, aligning with the pathway. Vertical cable management supports drops exceeding twenty-four inches, running from horizontal management to the riser pathway at the deck or floor above. The horizontal cable runway aligns with the conduits and is installed per room plans.
