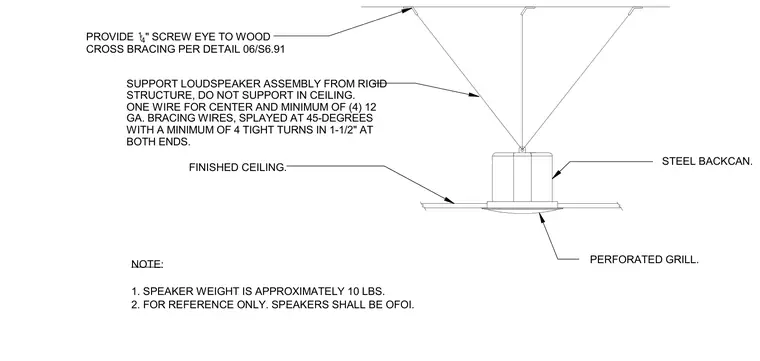

The loudspeaker assembly is suspended from the rigid structure above the finished ceiling using one center support wire and a minimum of four twelve-gauge bracing wires splayed at forty-five degrees. Each bracing wire requires a minimum of four tight turns in one and one-half inches at both ends and attaches to the wood cross bracing via a one-quarter-inch screw eye. The ten-pound speaker features a steel backcan and a perforated grill, and must be supported directly from the structural framing rather than the ceiling system.
PROVIDE 1/4 " SCREW EYE TO WOOD CROSS BRACING PER DETAIL 06/S6.91 SUPPORT LOUDSPEAKER ASSEMBLY FROM RIGID STRUCTURE, DO NOT SUPPORT IN CEILING. ONE WIRE FOR CENTER AND MINIMUM OF (4) 12 GA. BRACING WIRES, SPLAYED AT 45-DEGREES WITH A MINIMUM OF 4 TIGHT TURNS IN 1-1/2" AT BOTH ENDS. FINISHED CEILING. STEEL BACKCAN. NOTE: PERFORATED GRILL. 1. SPEAKER WEIGHT IS APPROXIMATELY 10 LBS. 2. FOR REFERENCE ONLY. SPEAKERS SHALL BE OFOI.
