Telecommunications · T-2SWEW

Wall Mounted LCD Display and AV Box Installation

Elements

About this detail

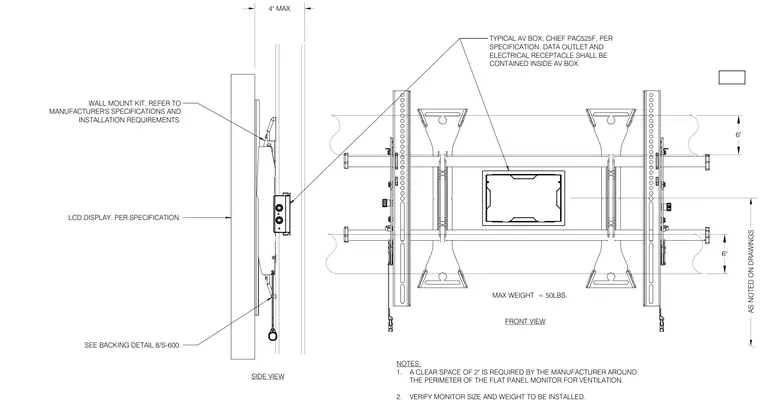

An LCD display mounts to a wall using a manufacturer wall mount kit with a maximum weight capacity of fifty pounds. A typical audiovisual box, model Chief PAC525F, is housed within the wall assembly to contain the data outlet and electrical receptacle. A two-inch clear space is required around the perimeter of the flat panel monitor for ventilation. Wall backing is coordinated per structural detail 8/S-600.
