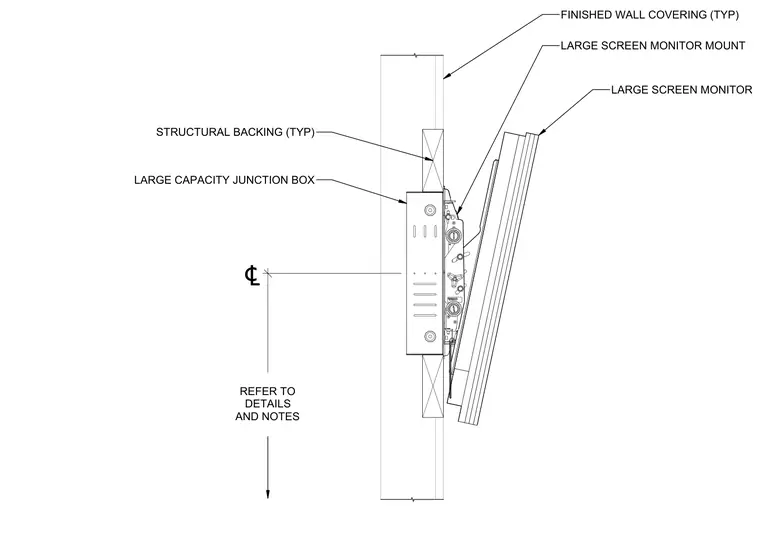

A large screen monitor mounts to a structural backing typically concealed behind the finished wall covering. A large capacity junction box is integrated within the wall cavity adjacent to the mounting hardware. Centerline dimensions and reference notes dictate the precise mounting elevation relative to the finished floor. Additional connection details and electrical requirements are coordinated per architectural and telecommunications drawings.
LARGE SCREEN MONITOR LARGE SCREEN MONITOR MOUNT STRUCTURAL BACKING (TYP) LARGE CAPACITY JUNCTION BOX REFER TO DETAILS AND NOTES ℄ FINISHED WALL COVERING (TYP)
