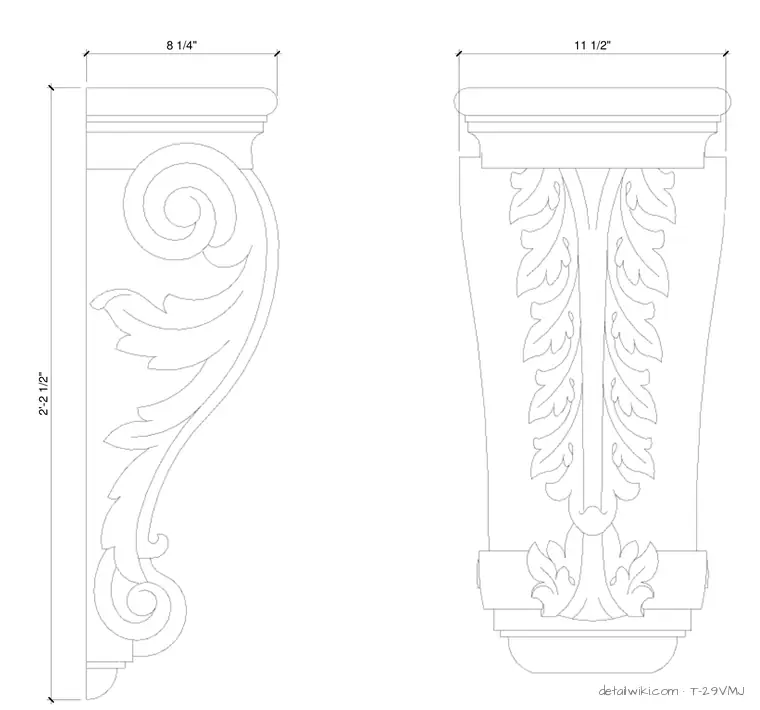

The drawing illustrates an ornamental architectural corbel or wall bracket featuring decorative scrollwork and acanthus leaf carvings. It provides a side elevation showing an 8 1/4" projection and a 2'-2 1/2" overall height, along with a front elevation showing an 11 1/2" width. The component is designed for structural or decorative support applications on walls.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
