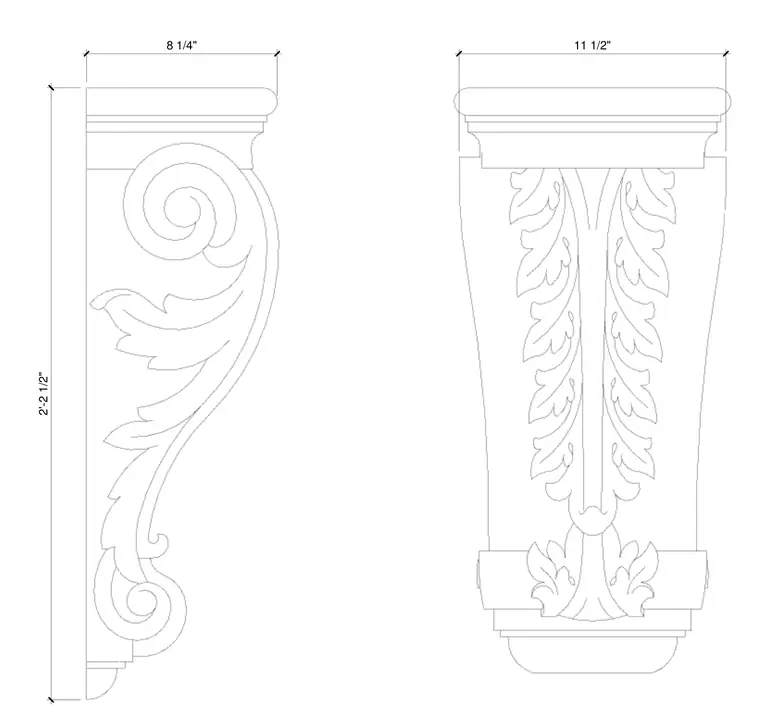

This ornamental architectural bracket is detailed with classical scrollwork and acanthus leaf carving, shown in side and front elevations. The overall profile measures two feet two and a half inches in height by eight and a quarter inches in depth, with a front face width of eleven and a half inches.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
