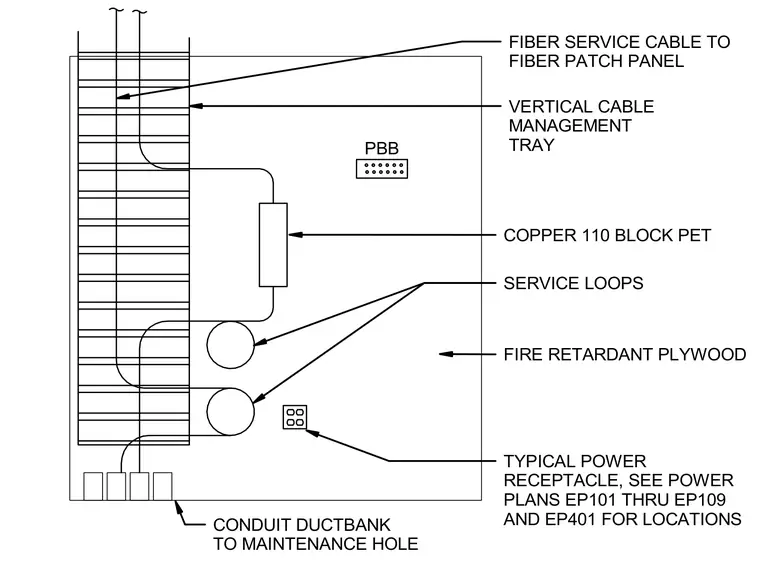

Incoming fiber service cables and conduit ductbanks from the maintenance hole route directly to the vertical cable management tray mounted against the fire retardant plywood backboard. Service loops are provided for both copper and fiber runs prior to termination at the copper 110 block and fiber patch panel. A primary backbone bonding bar and a typical power receptacle are positioned on the backboard per electrical plans.
PBB COPPER 110 BLOCK PET SERVICE LOOPS VERTICAL CABLE MANAGEMENT TRAY FIRE RETARDANT PLYWOOD CONDUIT DUCTBANK TO MAINTENANCE HOLE TYPICAL POWER RECEPTACLE, SEE POWER PLANS EP101 THRU EP109 AND EP401 FOR LOCATIONS FIBER SERVICE CABLE TO FIBER PATCH PANEL
