Moment frame beam bracing details with tabulated dimensions and an option to substitute tab plate welding with two three-quarter-inch diameter A325-SC slip-critical bolts per tab.

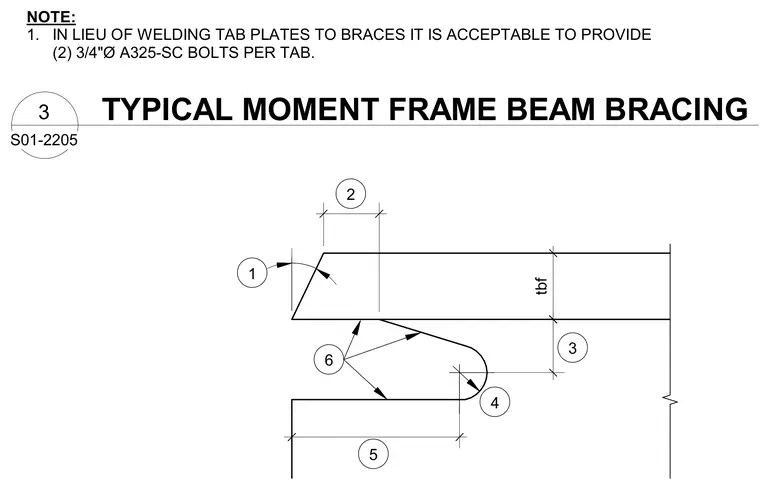

NOTE: 1. IN LIEU OF WELDING TAB PLATES TO BRACES IT IS ACCEPTABLE TO PROVIDE (2) 3/4"Ø A325-SC BOLTS PER TAB. tbf 2 1 6 4 3 5 S01-2205 3 TYPICAL MOMENT FRAME BEAM BRACING
