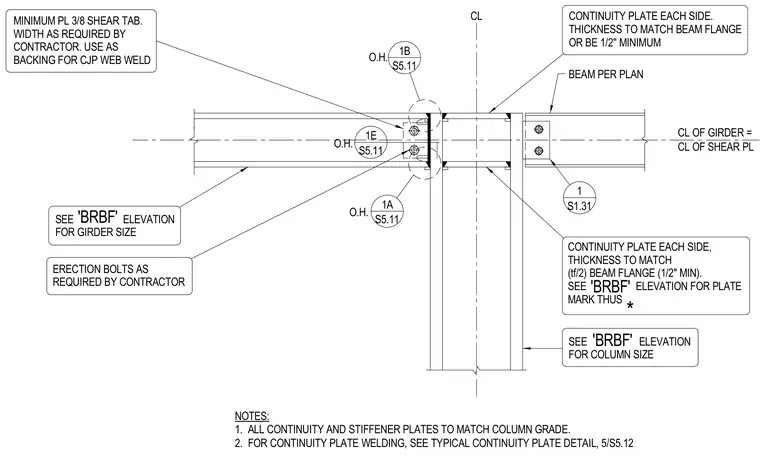

A steel beam frames into a column with a minimum 3/8-inch shear tab plate serving as backing for a complete joint penetration web weld. Continuity plates are provided on each side of the column, with thickness matching the beam flange or half the flange thickness with a 1/2-inch minimum. Erection bolts are installed as required by the contractor, and all continuity and stiffener plates match the column grade. The centerline of the girder aligns with the centerline of the shear plate.
MINIMUM PL 3/8 SHEAR TAB. WIDTH AS REQUIRED BY CONTRACTOR. USE AS BACKING FOR CJP WEB WELD SEE ELEVATION FOR GIRDER SIZE NOTES: 1. ALL CONTINUITY AND STIFFENER PLATES TO MATCH COLUMN GRADE. 2. FOR CONTINUITY PLATE WELDING, SEE TYPICAL CONTINUITY PLATE DETAIL, 5/S5.12 BEAM PER PLAN 'BRBF' * CONTINUITY PLATE EACH SIDE, THICKNESS TO MATCH (tf/2) BEAM FLANGE (1/2" MIN). SEE ELEVATION FOR PLATE MARK THUS CL O.H. 1E S5.11 O.H. 1A S5.11 CONTINUITY PLATE EACH SIDE. THICKNESS TO MATCH BEAM FLANGE OR BE 1/2" MINIMUM CL OF GIRDER = CL OF SHEAR PL SEE ELEVATION FOR COLUMN SIZE O.H. 1B S5.11 ERECTION BOLTS AS REQUIRED BY CONTRACTOR 1 S1.31 'BRBF' 'BRBF'
