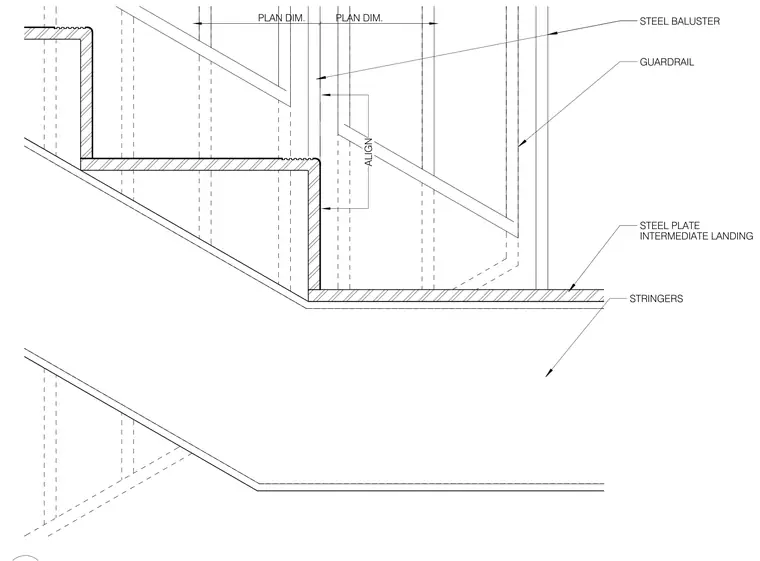

An intermediate landing steel plate bears onto structural stair stringers. Vertical steel balusters of the guardrail align with plan dimensions above the landing and stringer intersection.
ALIGN PLAN DIM. PLAN DIM. STEEL BALUSTER STEEL PLATE GUARDRAIL STRINGERS INTERMEDIATE LANDING
