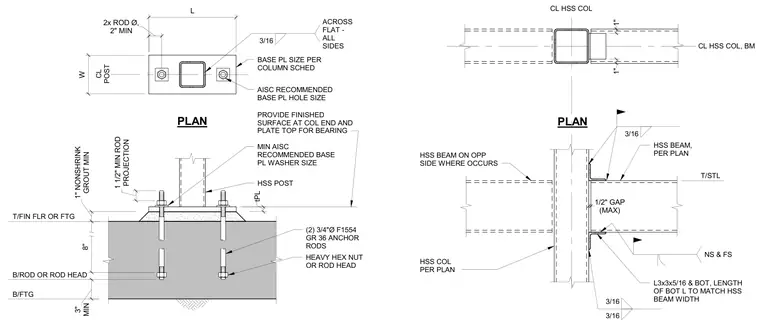

An HSS post base plate connection is supported by a concrete footing. The assembly features a base plate sized per the column schedule welded to the HSS post with a three-sixteenths inch fillet weld on all sides. Two three-quarter inch diameter ASTM F1554 Grade 36 anchor rods with heavy hex nuts or rod heads secure the plate, embedded eight inches with a minimum one and a half inch rod projection. A one inch minimum nonshrink grout layer sits beneath the base plate over the finished floor or footing surface. A finished surface is provided at the column end and plate top for bearing.
T/STL B/FTG T/FIN FLR OR FTG B/ROD OR ROD HEAD 3/16 CL HSS COL, BM PLAN CL HSS COL HSS BEAM, PER PLAN HSS COL PER PLAN NS & FS L3x3x5/16 & BOT, LENGTH OF BOT L TO MATCH HSS BEAM WIDTH HSS BEAM ON OPP SIDE WHERE OCCURS (MAX) 1/2" GAP 3/16 3/16 1" 1" 3/16 ACROSS FLAT - ALL SIDES BASE PL SIZE PER COLUMN SCHED CL POST (2) 3/4"Ø F1554 GR 36 ANCHOR RODS HEAVY HEX NUT OR ROD HEAD HSS POST PLAN MIN 3" AISC RECOMMENDED BASE PL HOLE SIZE MIN AISC RECOMMENDED BASE PL WASHER SIZE PROVIDE FINISHED SURFACE AT COL END AND PLATE TOP FOR BEARING L W 2" MIN 2x ROD Ø, tPL PROJECTION 1 1/2" MIN ROD 8" GROUT MIN 1" NONSHRINK
