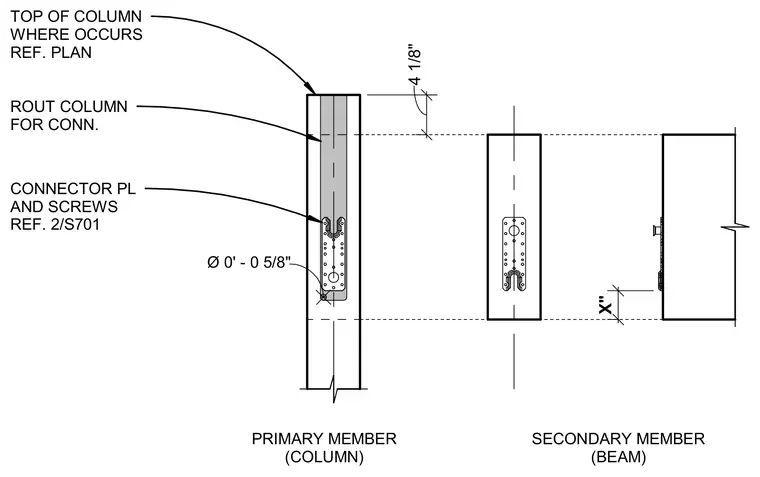

A secondary member beam connects to a primary column member by aligning with a routed recess in the column face. A connector plate and screws secure the members together, positioned at a specified offset dimension from the top of the column. The primary column is routed to receive the connector plate as referenced on the plans.
Ø 0' - 0 5/8" PRIMARY MEMBER (COLUMN) SECONDARY MEMBER (BEAM) X" TOP OF COLUMN WHERE OCCURS REF. PLAN ROUT COLUMN FOR CONN. CONNECTOR PL AND SCREWS REF. 2/S701 4 1/8"
