Structural · S-ZZA27

Concrete Wall Opening Reinforcement and Lintel Detail

Elements

About this detail

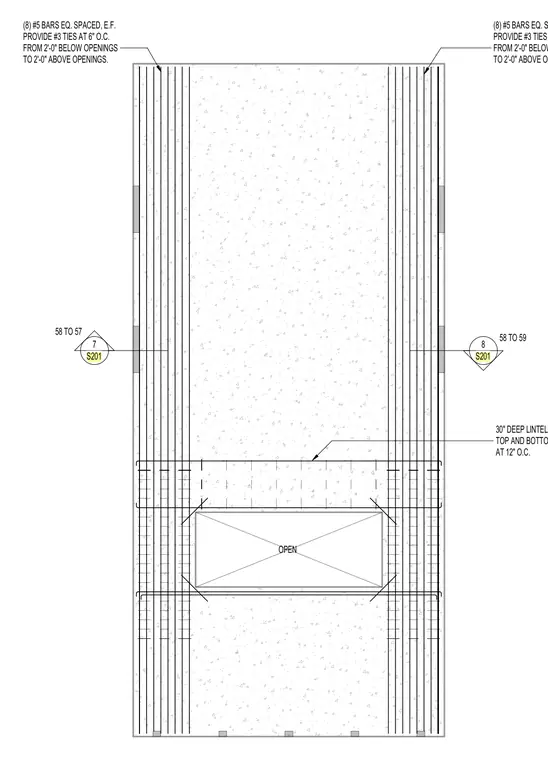

A reinforced concrete wall opening features eight number five vertical bars spaced equally on each face, supplemented by number three ties at six inches on center extending two feet below and two feet above the opening. A thirty inch deep lintel spans the opening with two number five bars at the top and bottom, reinforced with number three stirrups at twelve inches on center.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
