Structural · S-ZZ95F

HSS Post Framing Connection at Steel Beam and Deck

Materials

Concrete Steel

Elements

Columns Beams Walls Roofs Decks Arches Bracing Connections / Plates

Connections

HSS Connection Bracing Connection

About this detail

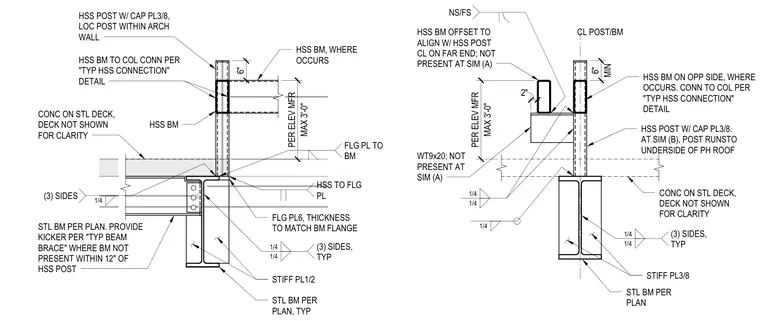

A structural steel beam and concrete on a metal deck support an HSS post framing connection. The HSS post features a three-eighths-inch cap plate and connects to framing members using standard flange plates matching the beam flange thickness. Fillet welds of one-quarter-inch size are specified on three sides typically at connection points. Additional stiffener plates, including one-half-inch and three-eighths-inch thicknesses, provide reinforcement to the steel beam web and flanges. A WT9x20 shape is utilized at specific conditions, and offset HSS beams align with the HSS post centerline.
