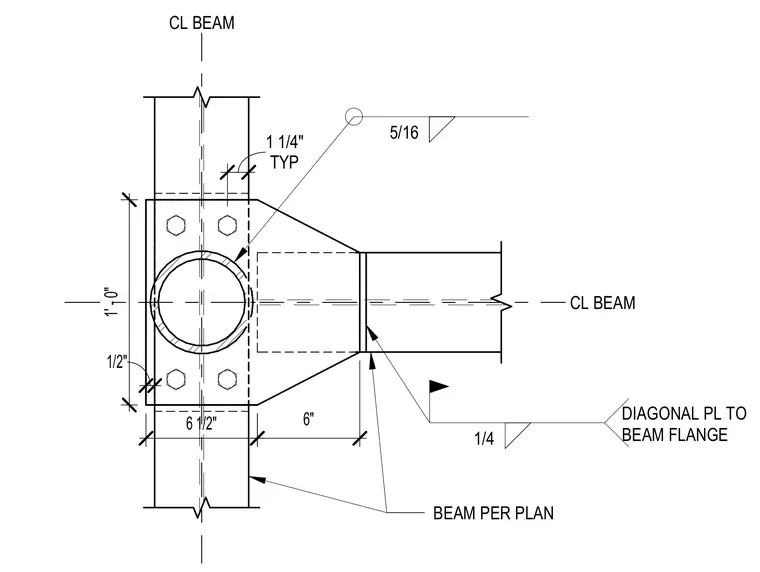

A structural connection details a photovoltaic support post framing into a main beam per plan with a diagonal plate assembly. The diagonal plate connects to the beam flange using a 1/4-inch fillet weld. A 5/16-inch fillet weld secures the tubular post to the connection plate assembly. Bolts spaced at 1 1/4 inches typical secure the base connection across a 1'-0" span with 6-inch and 6 1/2-inch dimensioned segments.
CL BEAM BEAM PER PLAN CL BEAM TYP 1 1/4" 5/16 1' - 0" 6 1/2" 6" 1/2" 1/4 DIAGONAL PL TO BEAM FLANGE
