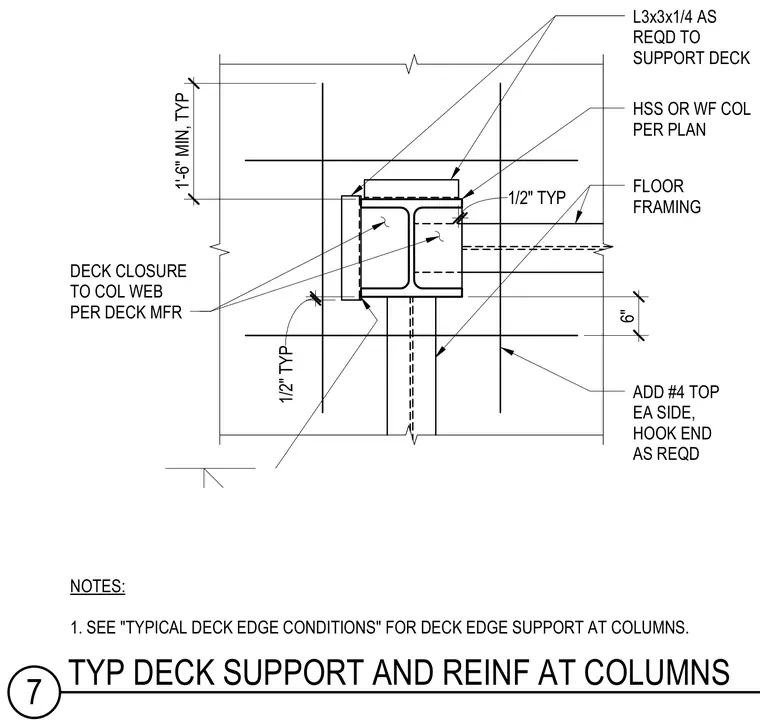

Floor framing layout and deck support conditions at a structural steel column. An angle measuring 3x3x1/4 is provided as required to support the metal deck, with deck closure to the column web per the manufacturer's specifications. Additional reinforcing bars size number 4 are placed at the top on each side with hook ends as required, extending a minimum of 1 foot 6 inches with a typical 6-inch spacing. A typical 1/2-inch clearance is maintained around the column flange and web intersections. Floor framing members tie into the column assembly according to the structural framing plan.
1'-6" MIN, TYP 6" ADD #4 TOP EA SIDE, HOOK END AS REQD HSS OR WF COL PER PLAN FLOOR FRAMING L3x3x1/4 AS REQD TO SUPPORT DECK DECK CLOSURE TO COL WEB PER DECK MFR NOTES: 1. SEE "TYPICAL DECK EDGE CONDITIONS" FOR DECK EDGE SUPPORT AT COLUMNS. 1/2" TYP 1/2" TYP 7 TYP DECK SUPPORT AND REINF AT COLUMNS
