A structural steel beam connects to a hollow structural section column using top and bottom plates welded with one-quarter-inch fillet welds and a web connection plate. The connection utilizes five-sixteenth-inch plates on each side secured with three three-quarter-inch diameter through-bolts at three-inch typical spacing. A gap of one-half inch maximum is maintained between the beam end and the column face.

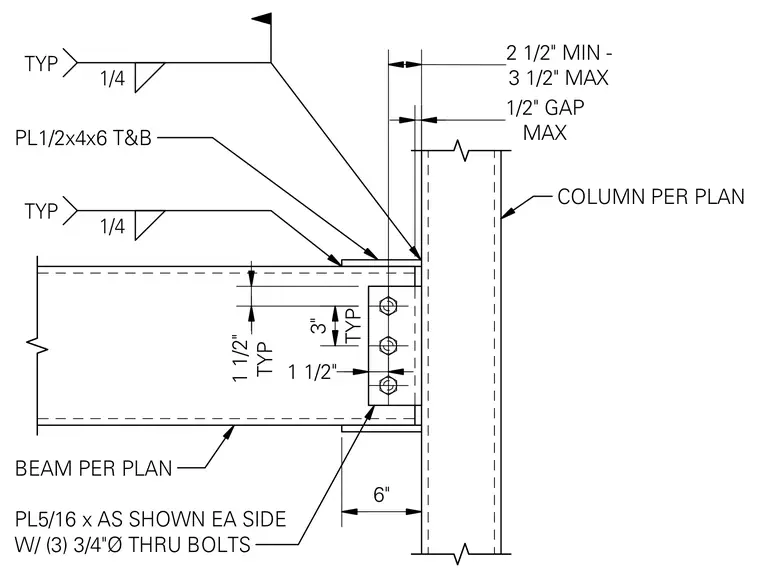

PL1/2x4x6 T&B 6" BEAM PER PLAN COLUMN PER PLAN PL5/16 x AS SHOWN EA SIDE W/ (3) 3/4"Ø THRU BOLTS TYP 1 1/2" 1 1/2" TYP 3" 3 1/2" MAX 2 1/2" MIN - 1/4 TYP 1/4 TYP MAX 1/2" GAP
