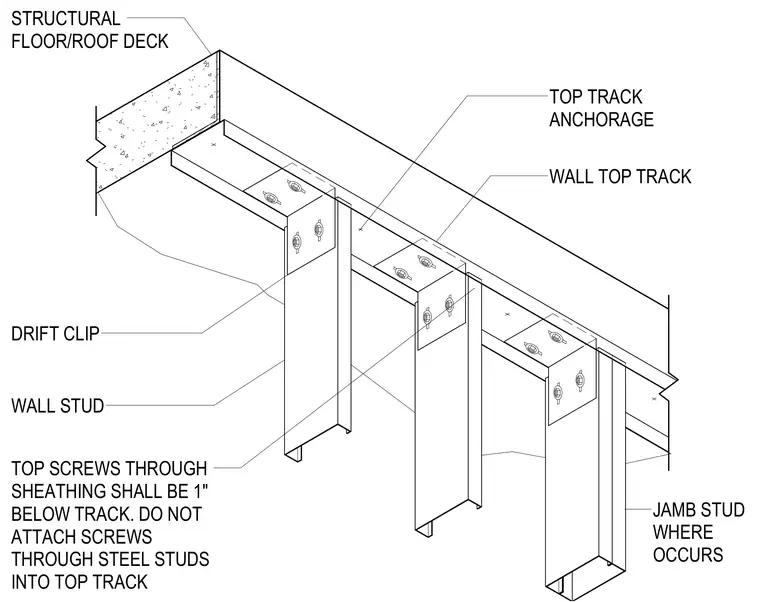

Cold-formed steel wall studs terminate at a structural floor or roof deck via a wall top track secured with top track anchorage. Drift clips connect the wall studs to the top track while allowing for horizontal structural movement. Jamb studs are installed where required at openings. Top screws through sheathing must be located one inch below the track, and screws must not be attached through steel studs directly into the top track to maintain the drift joint functionality.
WALL STUD STRUCTURAL FLOOR/ROOF DECK WALL TOP TRACK DRIFT CLIP TOP TRACK ANCHORAGE JAMB STUD WHERE OCCURS TOP SCREWS THROUGH SHEATHING SHALL BE 1" BELOW TRACK. DO NOT ATTACH SCREWS THROUGH STEEL STUDS INTO TOP TRACK
