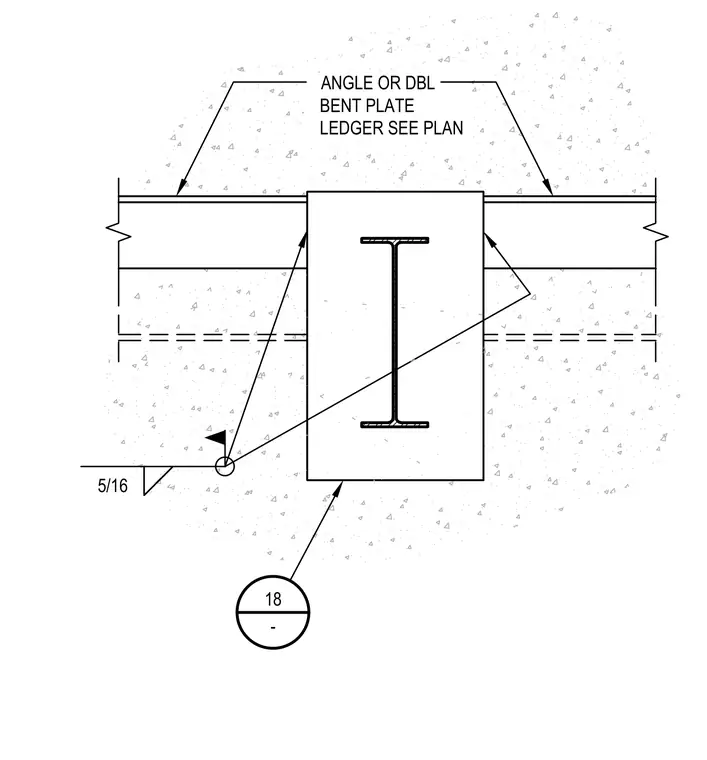

An angle or double bent plate ledger connects to the structural steel member as sized per plan. A five-sixteenth inch fillet weld joins the components at the specified intersection. The assembly is integrated within a concrete element.
