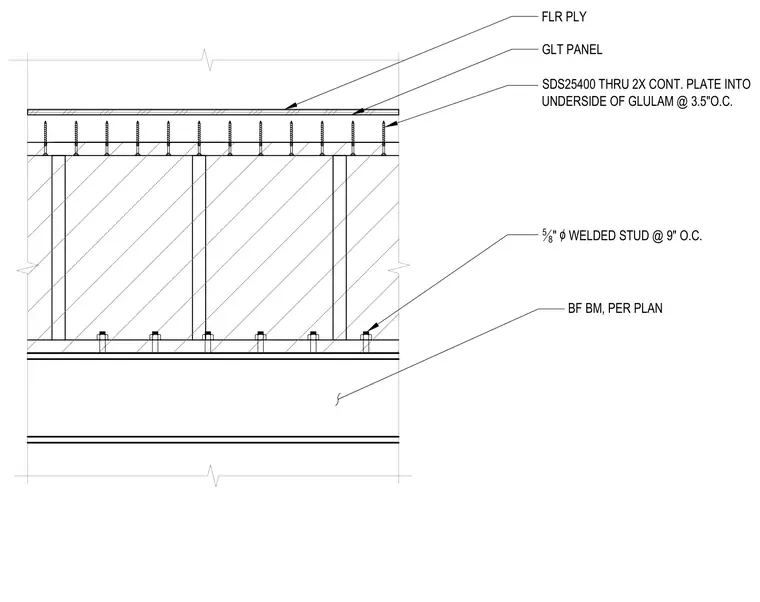

A glued laminated timber panel and floor plywood rest atop a continuous wood plate secured by SDS structural screws spaced at three and a half inches on center into the underside of the glulam. The assembly bears on a steel beam sized per plan and utilizes five-eighths inch diameter welded studs spaced at nine inches on center for shear transfer.
SDS25400 THRU 2X CONT. PLATE INTO UNDERSIDE OF GLULAM @ 3.5"O.C. FLR PLY GLT PANEL BF BM, PER PLAN 5 8 " ` WELDED STUD @ 9" O.C.
