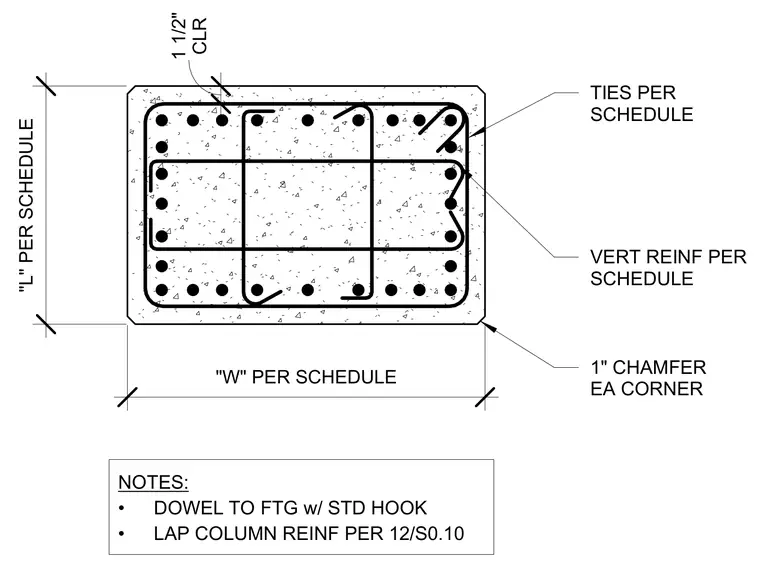

A rectangular concrete column is reinforced with vertical steel bars and interior ties sized per the schedule. The concrete mix maintains one and one-half inches of clear cover to the outermost reinforcement. Each corner features a one-inch chamfer. Dowels anchor into the footing with standard hooks, and column reinforcement is lapped per detail 12 on sheet S0.10.
"L" PER SCHEDULE "W" PER SCHEDULE TIES PER SCHEDULE VERT REINF PER SCHEDULE 1" CHAMFER EA CORNER NOTES: • DOWEL TO FTG w/ STD HOOK • LAP COLUMN REINF PER 12/S0.10 CLR 1 1/2"
