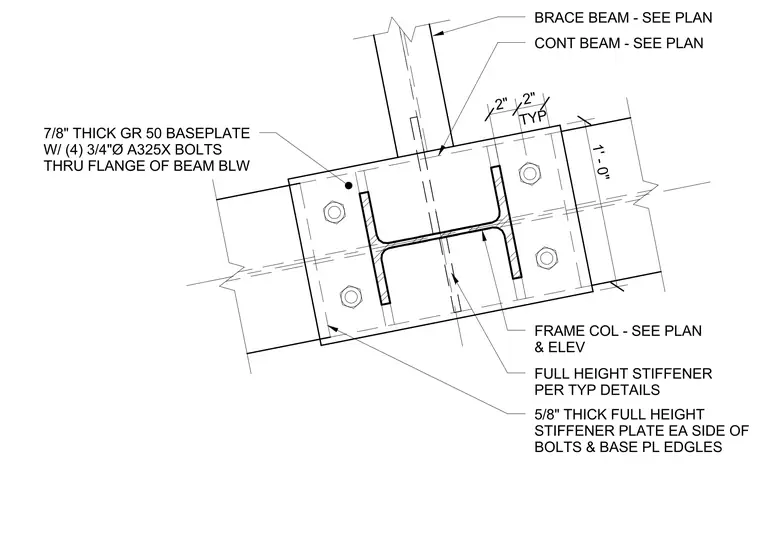

A brace beam connects to a continuous structural steel beam below via a seven-eighths inch thick Grade 50 baseplate secured with four three-quarters inch diameter ASTM A325X bolts through the flange of the beam below. The assembly includes five-eighths inch thick full-height stiffener plates on each side of the connection. A frame column is positioned per plan and elevation, with brace beams sized per plan.
BRACE BEAM - SEE PLAN FRAME COL - SEE PLAN & ELEV FULL HEIGHT STIFFENER PER TYP DETAILS 5/8" THICK FULL HEIGHT STIFFENER PLATE EA SIDE OF BOLTS & BASE PL EDGLES CONT BEAM - SEE PLAN 7/8" THICK GR 50 BASEPLATE W/ (4) 3/4"Ø A325X BOLTS THRU FLANGE OF BEAM BLW 1' - 0" 2" TYP 2"
