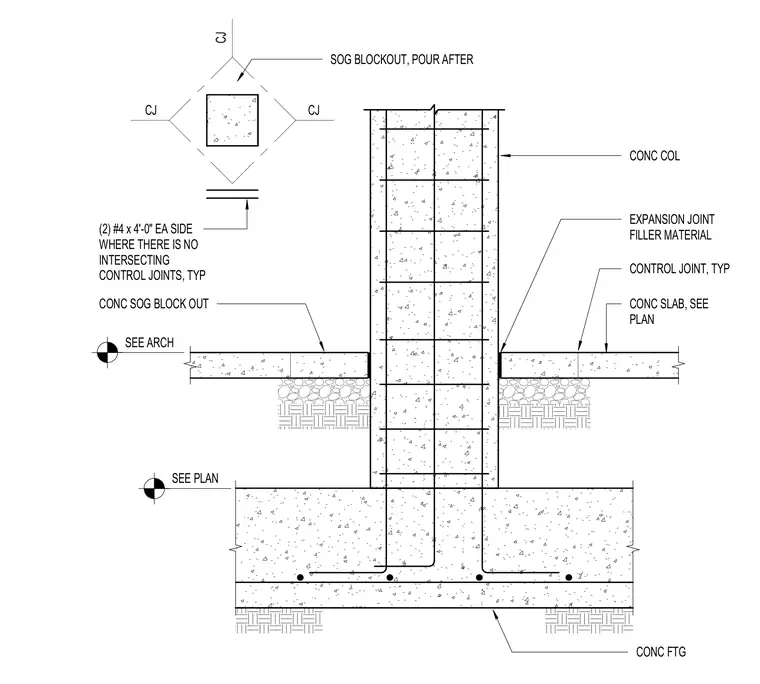

An interior concrete column bears on a reinforced concrete footing with a slab-on-grade surrounding it. An expansion joint filler material separates the concrete column from the concrete slab. A concrete slab-on-grade blockout is designated to be poured after, reinforced with two number four by four-foot dowels on each side where intersecting control joints are absent. Control joints are placed typically in the slab surrounding the column assembly.
CONC FTG EXPANSION JOINT FILLER MATERIAL CONC SLAB, SEE PLAN CONC COL SOG BLOCKOUT, POUR AFTER (2) #4 x 4'-0" EA SIDE WHERE THERE IS NO INTERSECTING CONTROL JOINTS, TYP SEE ARCH SEE PLAN CJ CJ CJ CONTROL JOINT, TYP CONC SOG BLOCK OUT
