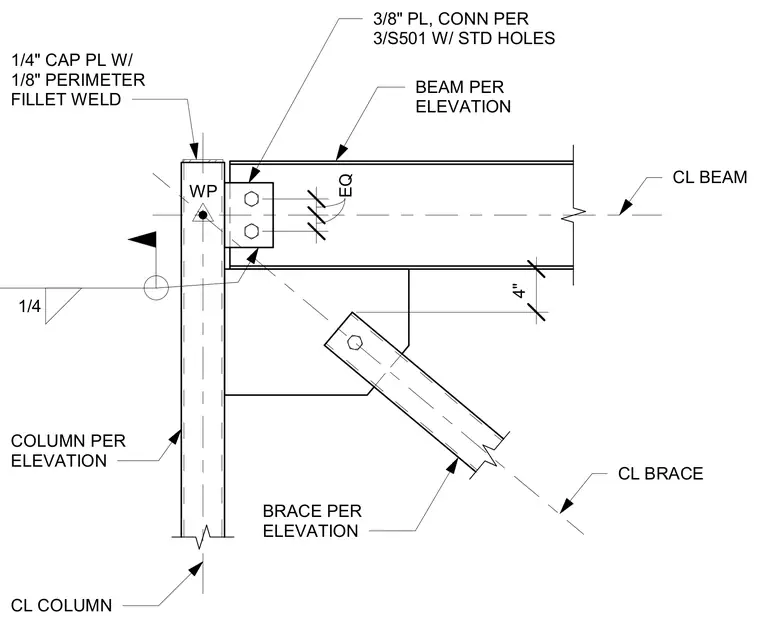

A structural steel top braced frame connection joins a beam and diagonal brace to a hollow structural section column. The HSS column is capped with a one-quarter-inch thick plate secured with a one-eighth-inch perimeter fillet weld. A beam connects to the column and gusset plate via a three-eighth-inch connection plate with standard holes, sized per structural specifications. A diagonal brace frames into the gusset plate welded to the column and beam assembly with a one-quarter-inch fillet weld.
BEAM PER ELEVATION COLUMN PER ELEVATION CL BRACE BRACE PER ELEVATION 4" WP CL BEAM CL COLUMN 1/4" CAP PL W/ 1/8" PERIMETER FILLET WELD 3/8" PL, CONN PER 3/S501 W/ STD HOLES EQ EQ 1/4
