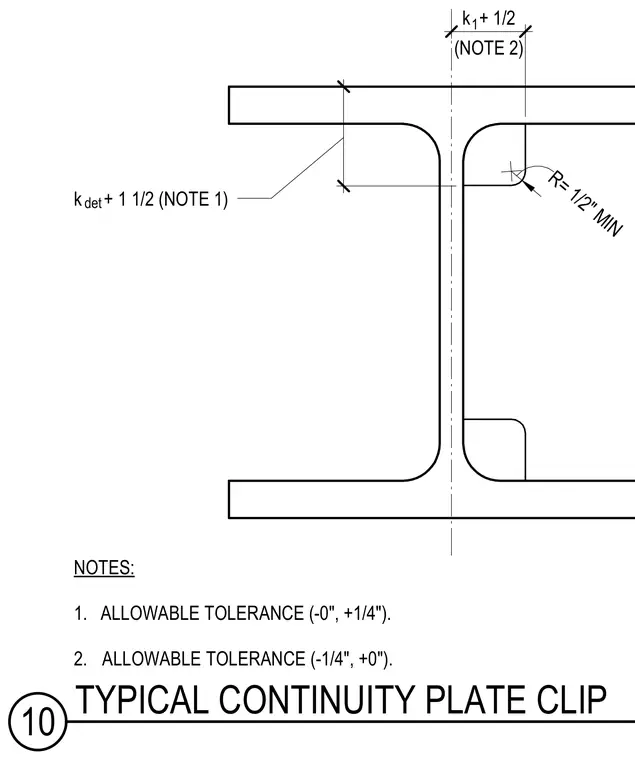

A structural steel column web and flange profile showing dimensional tolerances and corner clip geometry for continuity plates. The detail specifies a minimum radius of 1/2 inch for the corner clip. Dimensional callouts reference the column k-distance with specific tolerances of minus zero to plus 1/4 inch and minus 1/4 inch to plus zero.
NOTES: 1. ALLOWABLE TOLERANCE (-0", +1/4"). 2. ALLOWABLE TOLERANCE (-1/4", +0"). 3 1/2" 2 5/8" k + 1/2 (NOTE 2) k + 1 1/2 (NOTE 1) det 1 R= 1/2" MIN 10 TYPICAL CONTINUITY PLATE CLIP
