Structural · S-ZXDPN

Concrete Tilt-Up Panel Opening Reinforcement Detail

Materials

Concrete Reinforced Concrete

Elements

Reinforcing Roof / Floor Openings

Connections

Rebar Splice / Development

About this detail

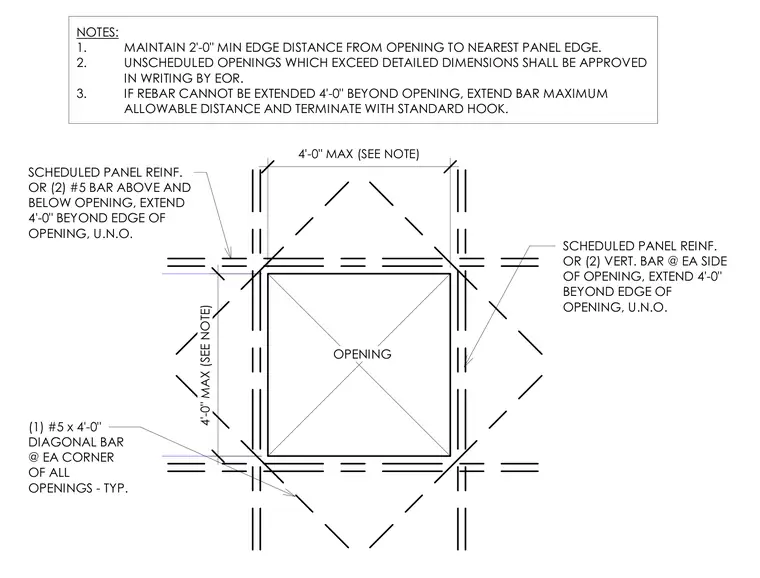

Reinforced concrete tilt-up wall panel openings require scheduled panel reinforcement or two number five vertical bars on each side of the opening, extending four feet beyond the edge unless noted otherwise. Two number five bars are placed above and below the opening, extending four feet beyond the edge. One number five by four-foot diagonal bar is placed at each corner of all openings as a typical condition. A minimum two-foot edge distance must be maintained from the opening to the nearest panel edge. Unscheduled openings exceeding detailed dimensions require written approval from the engineer of record. If rebar cannot be extended the full four feet, the bar must extend the maximum allowable distance and terminate with a standard hook.
