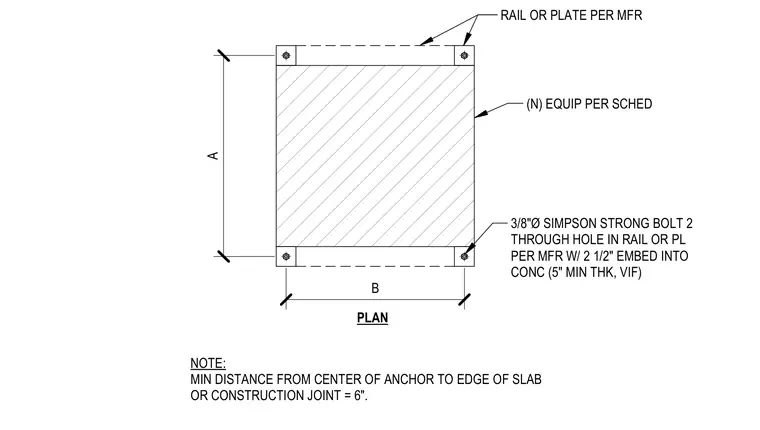

Equipment is mounted to a concrete slab using manufacturer-specified rails or plates anchored with 3/8-inch diameter Simpson Strong-Bolt 2 anchors. The anchors pass through holes in the rail or plate and achieve a 2 1/2-inch embedment into a concrete slab with a 5-inch minimum thickness, verified in field. A minimum distance of 6 inches must be maintained from the center of the anchor to the edge of the slab or construction joint.
A B RAIL OR PLATE PER MFR (N) EQUIP PER SCHED NOTE: MIN DISTANCE FROM CENTER OF ANCHOR TO EDGE OF SLAB OR CONSTRUCTION JOINT = 6". 3/8"Ø SIMPSON STRONG BOLT 2 THROUGH HOLE IN RAIL OR PL PER MFR W/ 2 1/2" EMBED INTO CONC (5" MIN THK, VIF) PLAN
