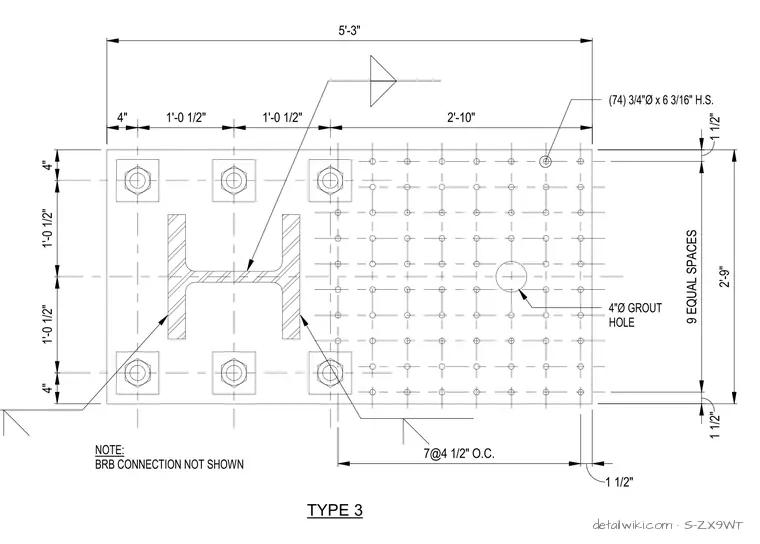

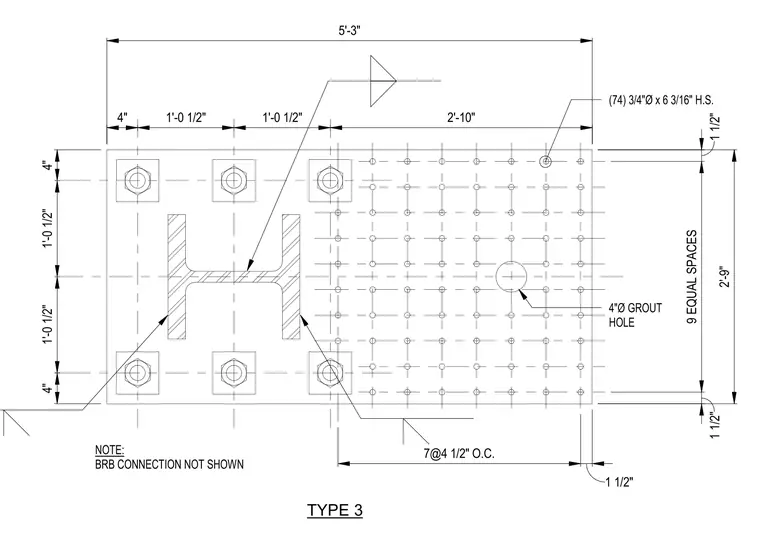

A Type 3 steel base plate assembly features a wide flange column shape welded to a heavy steel plate anchored by seventy-four 3/4-inch diameter by 6 3/16-inch high-strength bolts. The plate measures 5 feet 3 inches in length by 2 feet 9 inches in width, configured with a central 4-inch diameter grout hole and a series of spaced anchor locations laid out at 4 1/2-inch intervals on center. A note indicates that the buckling-restrained brace connection is not shown in this view.
4" 1'-0 1/2" 1'-0 1/2" 2'-10" 4" 1'-0 1/2" 1'-0 1/2" 4" 5'-3" 2'-9" TYPE 3 1 1/2" 9 EQUAL SPACES 1 1/2" 7@4 1/2" O.C. 1 1/2" (74) 3/4"Ø x 6 3/16" H.S. NOTE: BRB CONNECTION NOT SHOWN 4"Ø GROUT HOLE
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
