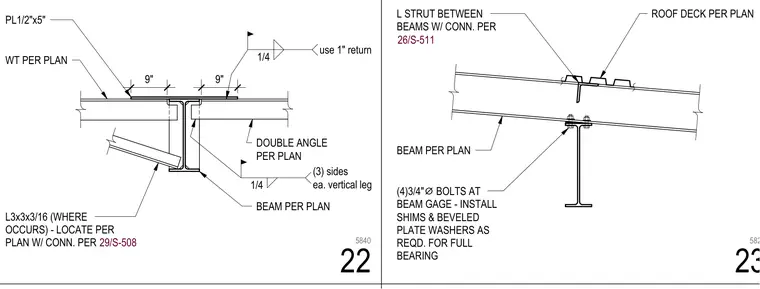

Two structural steel connection details illustrate beam gauge installation and strut framing beneath a roof deck. The left view shows a WT section and beam supported by a double angle connection, with a 1/2-inch by 5-inch plate welded to the top flange using quarter-inch fillet welds with one-inch returns on three sides of each vertical leg. An L3x3x3/16 angle strut is located per plan and connected using detail 29/S-508. The right view displays a beam supporting a roof deck with a connecting angle strut per detail 26/S-511, secured by four three-quarter-inch diameter bolts at the beam gauge alongside shims and beveled plate washers for full bearing.
BEAM PER PLAN ROOF DECK PER PLAN (4)3/4" ⌀ BOLTS AT BEAM GAGE - INSTALL SHIMS & BEVELED PLATE WASHERS AS REQD. FOR FULL BEARING L STRUT BETWEEN BEAMS W/ CONN. PER 26/S-511 L3x3x3/16 (WHERE OCCURS) - LOCATE PER PLAN W/ CONN. PER 29/S-508 9" 9" 1/4 use 1" return PL1/2"x5" BEAM PER PLAN DOUBLE ANGLE PER PLAN 1/4 (3) sides ea. vertical leg WT PER PLAN 23 5823 22 5840
