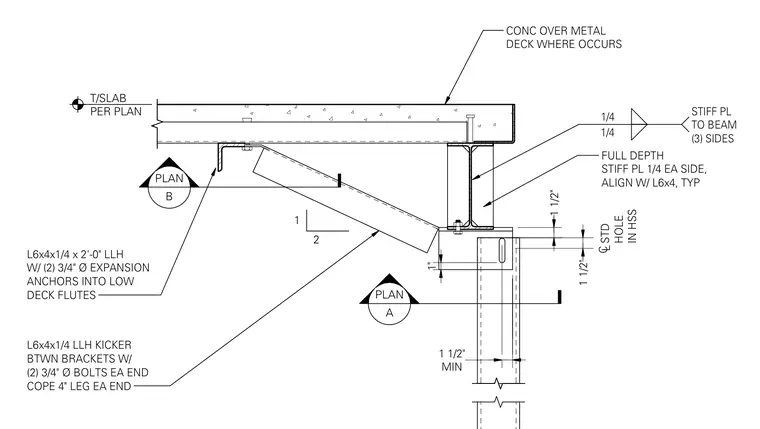

An L6x4x1/4 long-leg-horizontal kicker brace connects between an overhead metal deck assembly and a vertical hollow structural section column. The upper end of the angle is secured with two three-quarter-inch diameter expansion anchors fastened into low deck flutes. The lower end is bolted with two three-quarter-inch diameter bolts to a connection bracket, featuring a four-inch leg cope at each end. A support beam framed above the column receives full-depth one-quarter-inch stiffener plates on each side, welded on three sides and aligned with the angle. The hollow structural section column includes standard slotted holes to accommodate the connection geometry.
A PLAN MIN 1 1/2" 1" 1 1/2" 1 1/2" C L STD HOLE IN HSS FULL DEPTH STIFF PL 1/4 EA SIDE, ALIGN W/ L6x4, TYP 1/4 1/4 STIFF PL TO BEAM (3) SIDES CONC OVER METAL DECK WHERE OCCURS L6x4 KICKER T/SLAB PER PLAN 1 2 B PLAN L6x4x1/4 x 2'-0" LLH W/ (2) 3/4" Ø EXPANSION ANCHORS INTO LOW DECK FLUTES L6x4x1/4 LLH KICKER BTWN BRACKETS W/ (2) 3/4" Ø BOLTS EA END COPE 4" LEG EA END
