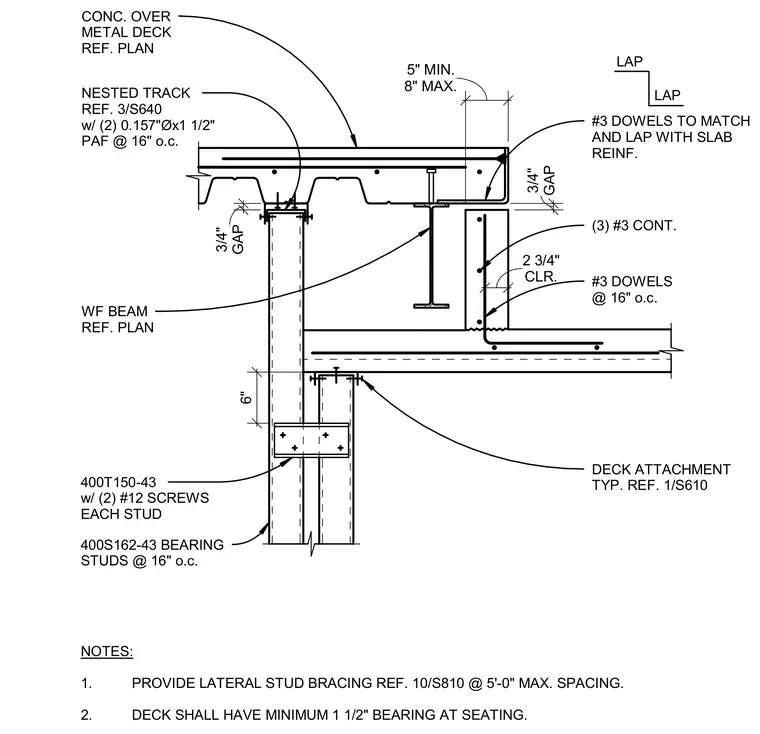

Tiered theater seating support framing utilizes concrete over a metal deck bearing on a wide-flange beam and cold-formed metal framing. The assembly features 400S162-43 bearing studs at 16 inches on center with nested 400T150-43 tracks secured by two 0.157-inch diameter by 1 1/2-inch powder-actuated fasteners per stud at 16 inches on center, and two number 12 screws per stud. The concrete slab over the metal deck connects with three continuous number 3 reinforcing bars and number 3 dowels at 16 inches on center, lapped with the slab reinforcement. A 3/4-inch gap is maintained at structural intersections, and the metal deck provides a minimum 1 1/2-inch bearing at the seating edge.
CLR. 2 3/4" 8" MAX. 5" MIN. GAP 3/4" 6" NOTES: 1. PROVIDE LATERAL STUD BRACING REF. 10/S810 @ 5'-0" MAX. SPACING. 2. DECK SHALL HAVE MINIMUM 1 1/2" BEARING AT SEATING. CONC. OVER METAL DECK REF. PLAN GAP 3/4" NESTED TRACK REF. 3/S640 w/ (2) 0.157"Øx1 1/2" PAF @ 16" o.c. WF BEAM REF. PLAN 400T150-43 w/ (2) #12 SCREWS EACH STUD 400S162-43 BEARING STUDS @ 16" o.c. DECK ATTACHMENT TYP. REF. 1/S610 #3 DOWELS @ 16" o.c. (3) #3 CONT. #3 DOWELS TO MATCH AND LAP WITH SLAB REINF. LAP LAP
