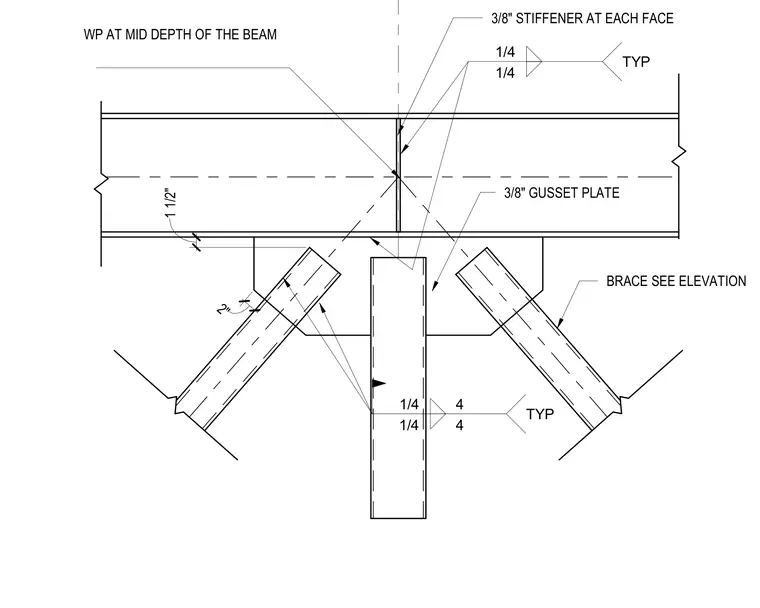

A three-eighths-inch gusset plate connects diagonal structural steel braces to the underside of a horizontal steel beam and vertical member. Three-eighths-inch stiffener plates are welded to each face of the beam web at the work point located at mid-depth of the beam. Fillet welds of one-quarter-inch size are applied typically along the gusset plate and stiffener connections.
1/4 4 1/4 4 TYP 1 1/2" 1/4 1/4 TYP WP AT MID DEPTH OF THE BEAM 3/8" STIFFENER AT EACH FACE BRACE SEE ELEVATION 3/8" GUSSET PLATE 2"
