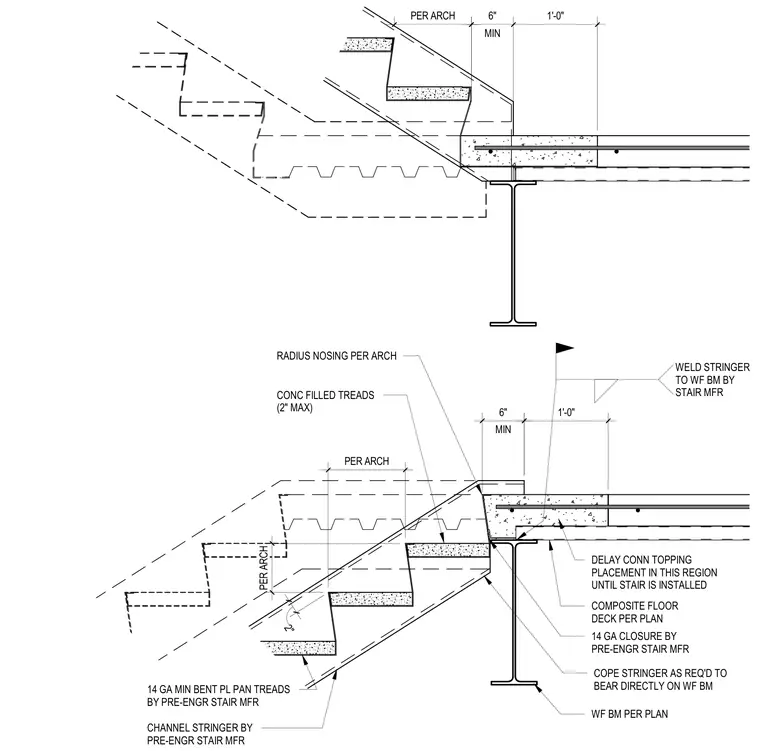

A channel stringer provided by a pre-engineered stair manufacturer bears directly on a wide flange beam, coped as required for a flush bearing condition. The stringer is welded to the wide flange beam by the stair manufacturer. Fourteen-gauge minimum bent plate pan treads feature concrete-filled treads with a two-inch maximum thickness, radiused nosing, and a fourteen-gauge closure. The assembly interfaces with a composite floor deck per plan, with concrete topping placement delayed in this region until the stair is installed.
MIN 6" 1'-0" PER ARCH 1'-0" RADIUS NOSING PER ARCH CONC FILLED TREADS (2" MAX) CHANNEL STRINGER BY PRE-ENGR STAIR MFR 14 GA MIN BENT PL PAN TREADS BY PRE-ENGR STAIR MFR WF BM PER PLAN COPE STRINGER AS REQ'D TO BEAR DIRECTLY ON WF BM COMPOSITE FLOOR DECK PER PLAN DELAY CONN TOPPING PLACEMENT IN THIS REGION UNTIL STAIR IS INSTALLED 14 GA CLOSURE BY PRE-ENGR STAIR MFR WELD STRINGER TO WF BM BY STAIR MFR PER ARCH MIN 6" 2" PER ARCH
