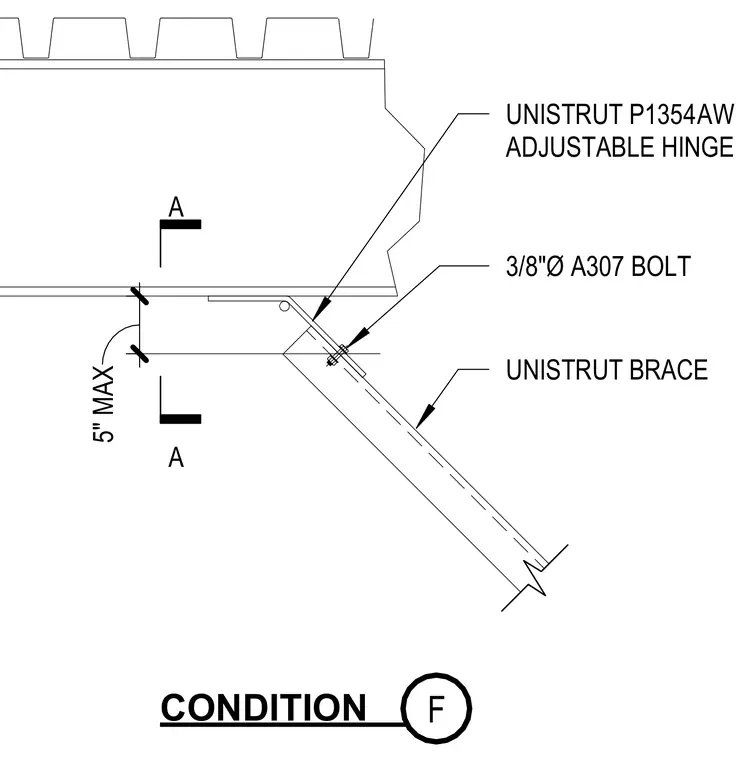

A Unistrut brace connects via a Unistrut P1354AW adjustable hinge secured with a three-eighths-inch diameter A307 bolt. A maximum five-inch dimension limits the layout spacing.
UNISTRUT BRACE 3/8"Ø A307 BOLT CONDITION UNISTRUT P1354AW ADJUSTABLE HINGE A A 5" MAX F
