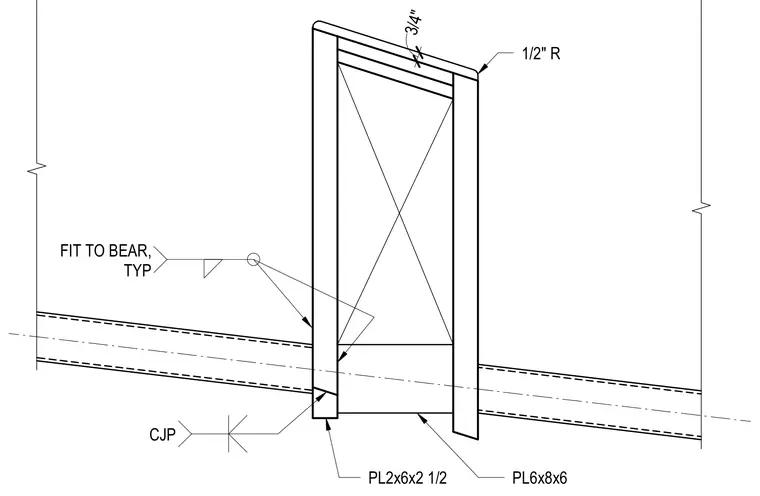

A structural steel frame connection is detailed with a plate size of 6x8x6 and an additional bearing plate size of 2x6 by 2 and 1/2 inches. The assembly incorporates a three-quarter-inch dimension and a one-half-inch radius detail. Complete joint penetration welds secure the structural members, supplemented by typical fit-to-bear weld callouts. All components are detailed for heavy structural framing integration.
