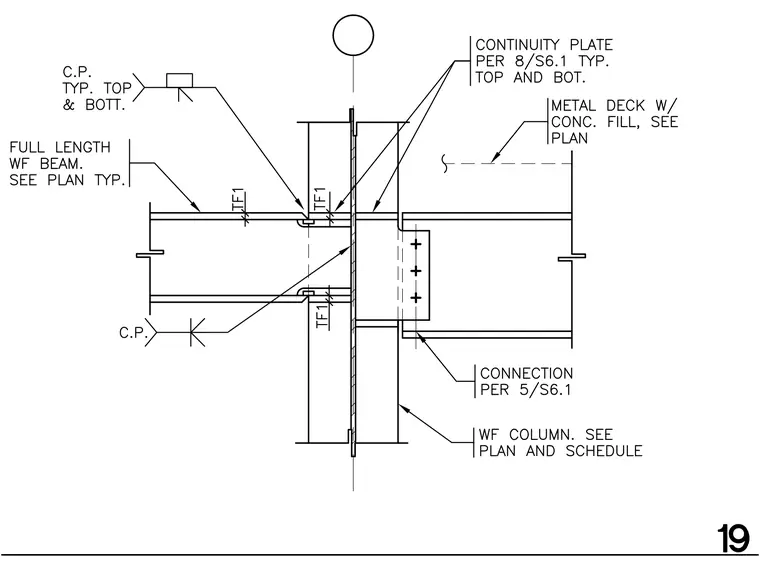

A wide-flange column supports intersecting wide-flange beams on opposite flanges, detailed with continuity plates at the top and bottom flange levels. A full-length wide-flange beam connects on the left with welds designated TF1 and continuity plates marked C.P. typically at the top and bottom. A metal deck with concrete fill frames into the right side adjacent to a wide-flange column sized per plan and schedule. The right beam connects via a tab plate with three bolts and a welded connection detailed per 5/S6.1.
