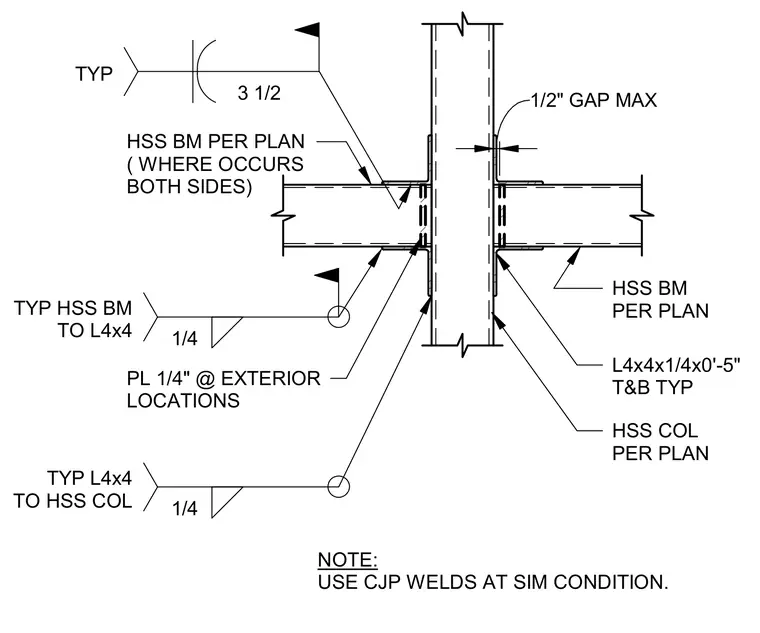

A hollow structural section beam frames into a hollow structural section column using top and bottom L4x4x1/4x0'-5" angles welded with quarter-inch fillet welds. A quarter-inch plate is added at exterior locations, and complete joint penetration welds are specified at similar conditions. A maximum half-inch gap is maintained between the beam end and the column face.
1/2" GAP MAX HSS BM PER PLAN L4x4x1/4x0'-5" T&B TYP HSS COL PER PLAN HSS BM PER PLAN ( WHERE OCCURS BOTH SIDES) PL 1/4" @ EXTERIOR LOCATIONS NOTE: USE CJP WELDS AT SIM CONDITION. 3 1/2 TYP 1/4 TYP L4x4 TO HSS COL 1/4 TYP HSS BM TO L4x4
